Pillow plate laser welding machine

HS LASER provides a wide variety of laser machines designed to meet diverse industrial needs. From welding and cutting to marking, cleaning, and essential accessories, each machine delivers high precision, reliable performance, and long-lasting durability. Explore our product lineup to find the right solution for your manufacturing and processing requirements.

Wide Application Across Diverse Industrial Scenarios

Tailored for diversified production demands, this mature pillow plate laser welding machine implements stable production via proven heat exchanger plate laser welding technology across five mainstream industries

Petrochemical Industry

Fabricate jacket pillow plates and pressure-bearing shell plates for chemical reaction vessels, adapting to operating pressure up to 500bar.

Food & Beverage Sector

Produce cooling pillow plates for sterilization and fermentation tanks, with hygienic welds meeting strict food tightness standards;

New Energy & Lithium Storage

Manufacture liquid cooling pillow plates for power batteries and energy storage modules, limiting thermal deformation to secure consistent heat dissipation performance.

Pharmaceutical Equipment Production

Process interlayer pillow plates for medical reactors, with impurity-free welds complying with pharmaceutical GMP specifications.

HVAC & Industrial Boiler

Mass-produce heat exchange pillow plates for civil and industrial boiler systems to support continuous batch fabrication.

On-site equipment demonstration video

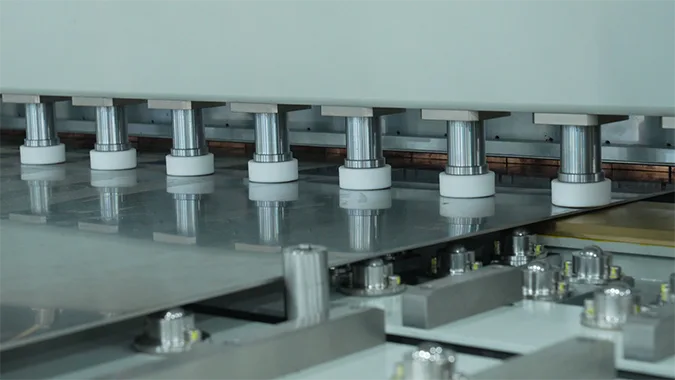

The video showcases HS Laser’s fully automated pillow-shaped plate laser welding machine. The machine handles feeding and welding, producing neat and aesthetically pleasing welds, achieving high-efficiency production.

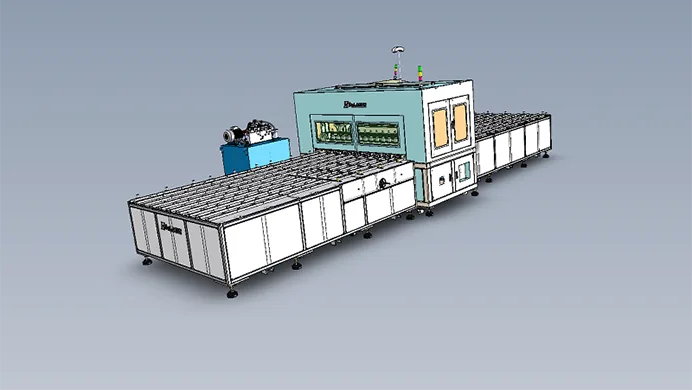

Benchmark Specification Comparison with Peer Welding Equipment Core Competitive Advantages of HS Laser’s

Comparison Items	HS Pillow Plate Laser Welding Machine	Generic Domestic Welding Unit	Imported European Equivalent Model
Laser Output Power	2000W/3000W/4000W/6000W optional	Fixed 2000W & 3000W only	Minimum 3000W, no low-power options
Processing Stroke	1500×3000mm up to 12000mm customizable	Max stroke limited within 6000mm	Fixed 6000mm, 30% extra cost for dimensional modification
Drive & Feeding System	6-axis robotic linkage + fully automatic feeding	3-axis semi-auto setup with manual loading	6-axis robot equipped, separate feeding system requires extra procurement
Production Yield Rate	≥99.7% supported by mature preset pillow plate laser welding parameters	94%~96% qualified output	≥99.8% yield with 65% higher overall purchase cost
Daily Power Consumption	38% lower energy cost vs traditional welding devices	Standard industry baseline	15% higher power consumption than domestic counterparts

Welding Equipment

Customized Process Library

Independently developed parameter archive for dimple plate laser welding, hundreds of pre-calibrated programs for varied sheet thicknesses to cut down clients’ field debugging cycles.

Full-automatic Production Design

Built-in six-axis robotic assembly enables the pillow plate laser welding machine to complete feeding, positioning, continuous welding, and finished part unloading automatically, boosting single-shift productivity by 2.8 times.

Long-lasting Core Configuration

Original imported fiber laser generator with over 100,000 working lifespan, precision water cooling system stabilizes laser power under long uninterrupted operation.

Flexible Non-standard Custom Build

Worktable length adjustable from 1500mm to 12000mm, seamless connection to buyers’ existing automated assembly lines.

Premium Weld Finish

Minimal heat-affected zone delivers pore-free, smooth welds, passing pressure resistance tests directly and eliminating extra post-weld polishing procedures.

All-round Pre-sale & After-sale Supporting Solutions

Pre-sales Technical Support

We provide professional consultation and customize equipment solutions based on your production needs; customers can refer to our actual production cases to purchase the required number of machines

Non-standard Customization

Flexible modification on laser power, equipment dimension, and automation modules to satisfy unique production requirements

Global On-site Commissioning

Overseas engineers complete machine installation, debugging, and operator training covering routine maintenance and parameter adjustment

Formal Warranty Policy

2-year warranty for laser core components and 1-year full machine coverage, global spare part warehouses support 48-hour expedited component delivery

Permanent Technical Upgrade

Complimentary remote program updates to continuously optimize dimple plate laser welding craft, cost-friendly supply of wearing parts throughout equipment service life.

FAQ

Q1: Will the sample welding test of this pillow plate laser welding machine incur extra fees?

A: All sample pillow plate laser welding tests are free of charge; customers only need to deliver raw pillow plate blanks, and formal business discussion starts once test samples pass quality inspection.

Q2: Is this welding unit compatible with aluminum alloy pillow plate fabrication?

A: Yes, optimized dissimilar-metal welding parameters are preloaded to weld stainless steel, carbon steel, and aluminum-made pillow plates efficiently.

Q3: What is the standard production lead time after order confirmation?

A: Standard-spec machines are available in stock for 7–10 working days; customized dimensional orders require 25–35 working days for production.

Q4: Can novice operators master daily operation and maintenance quickly?

A: Dual English-Chinese interactive control panel; new operators can run equipment independently after 1–3 days of professional on-site training, routine maintenance only includes regular lens cleaning and cooling water replacement.

Q5: How does HS Laser handle unexpected equipment breakdown for overseas clients?

A: Remote online troubleshooting is prioritized; spare parts are dispatched from regional warehouses for hardware faults, with field engineer arrangement for critical urgent malfunctions.
