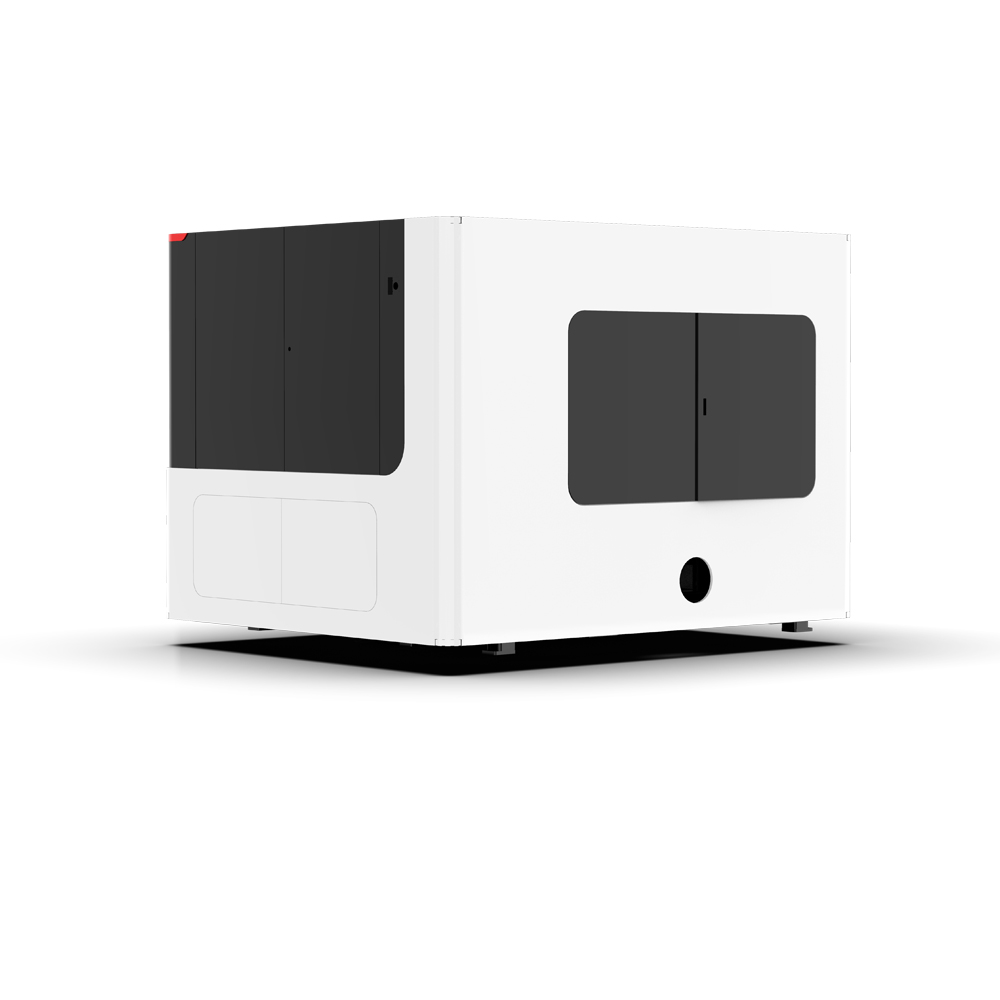

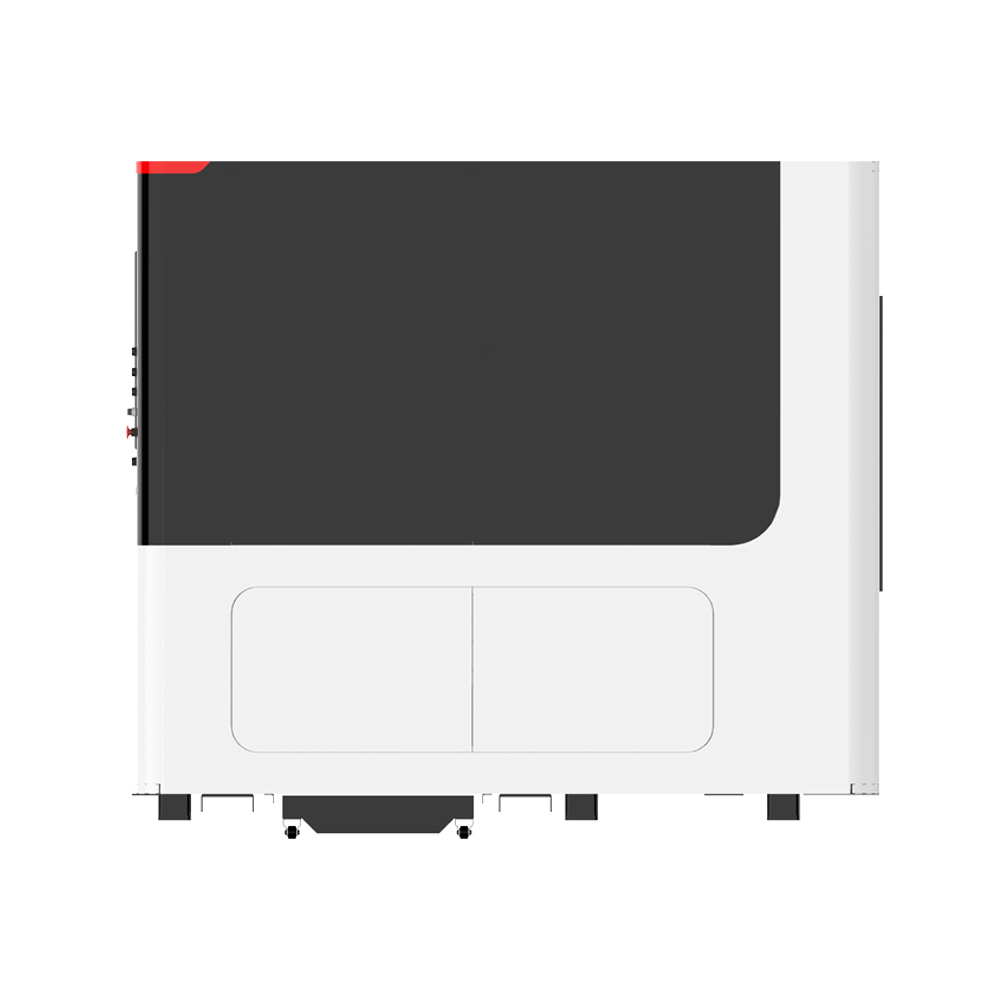

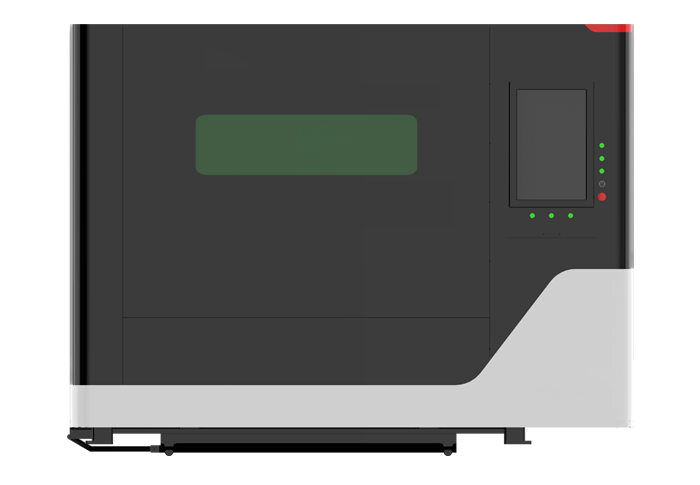

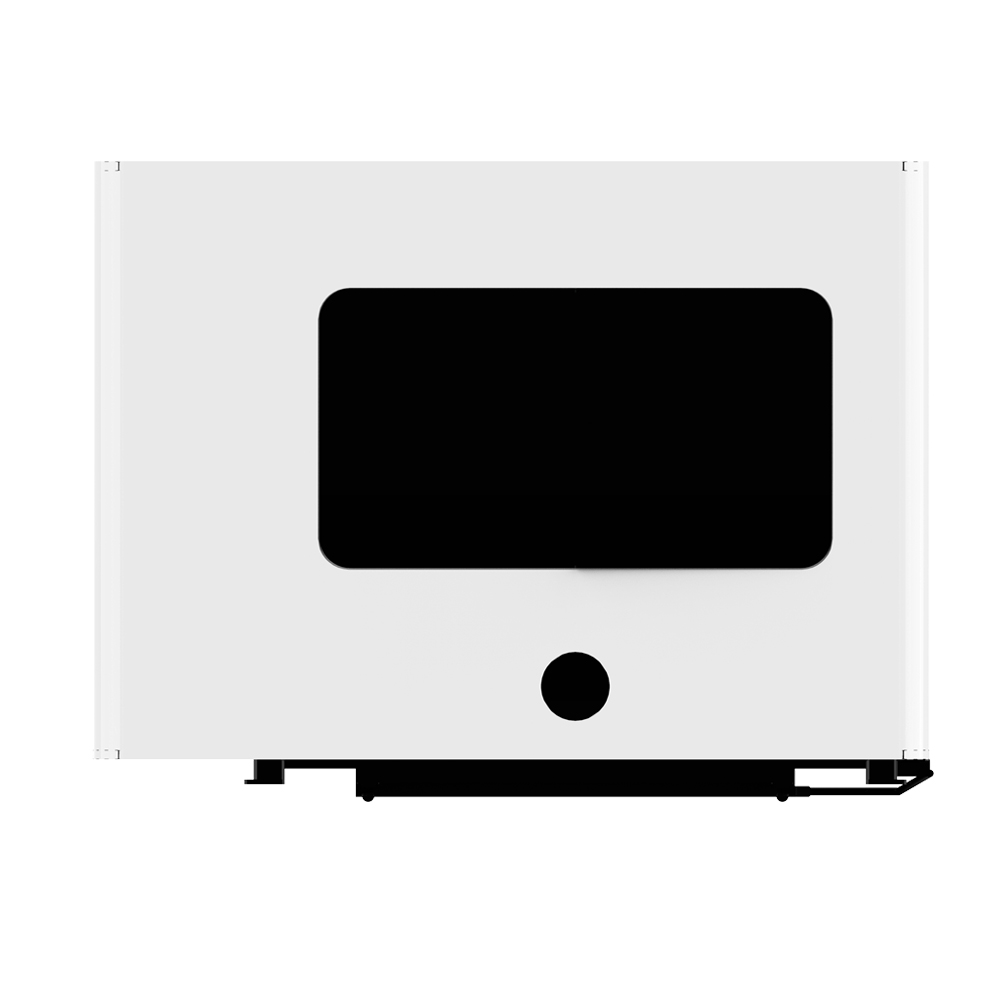

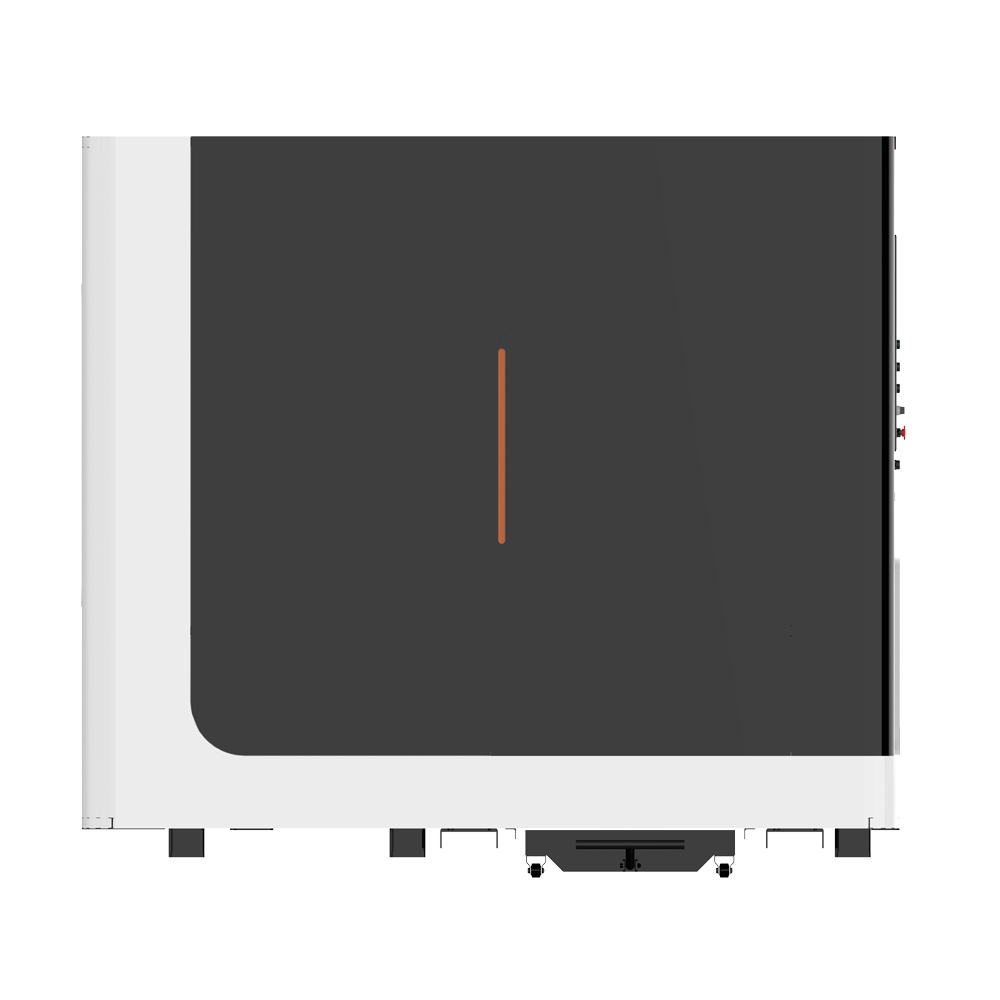

Precision Laser Cutting Machine / Gold Fiber Laser Cutting Machine
A special‑cut laser machine designed for gold, brass, and aluminum delivers clean, precise cutting with a powerful 2000W maximum laser output. Its compact 400×200 mm working area supports small metal parts, jewelry pieces, and high‑detail fabrication, making it ideal for workshops that need stable performance, fine cutting quality, and efficient production on soft and precious metals.
Laser Power: 1000W 1500W 2000W
Model Number: HS-CP2040 HS-CP6040 HS-CP6060 HS-CP1390
Fiber Laser Cutting Machine System with CP series

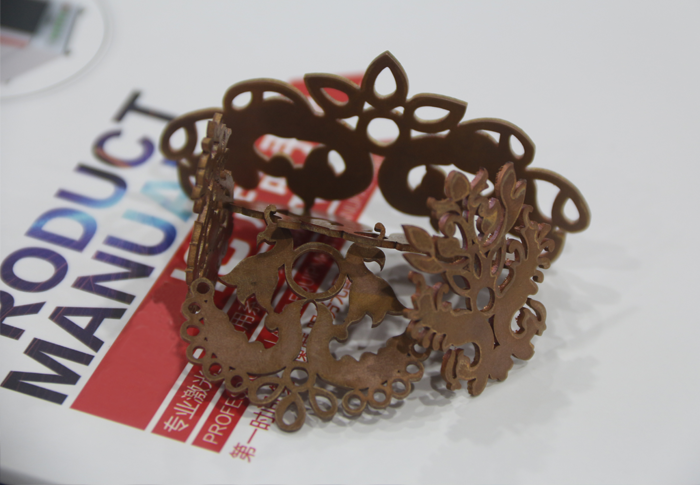

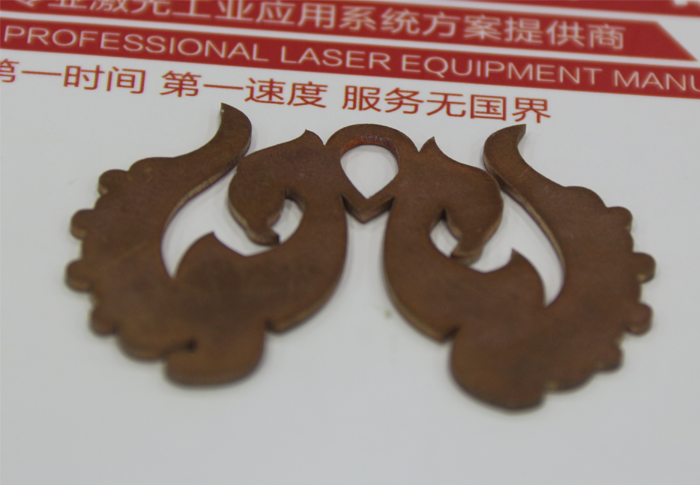

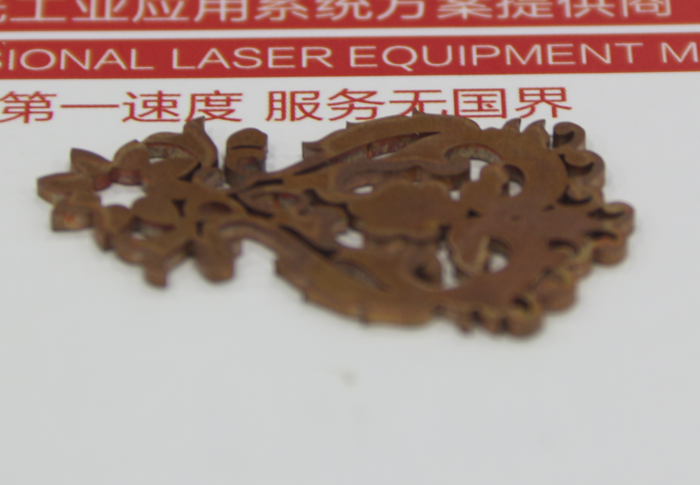

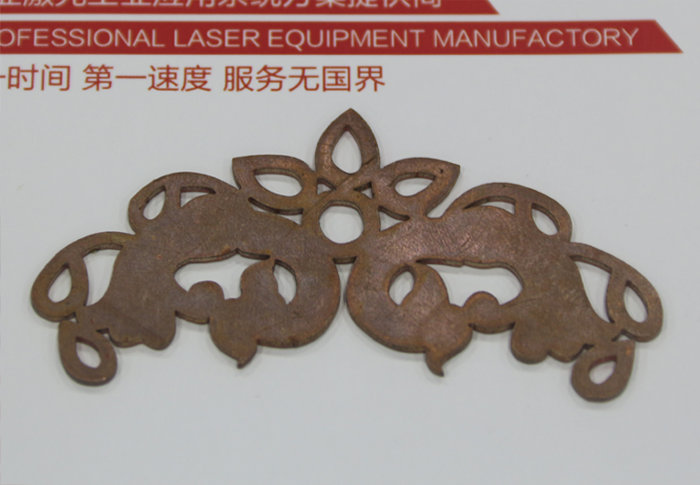

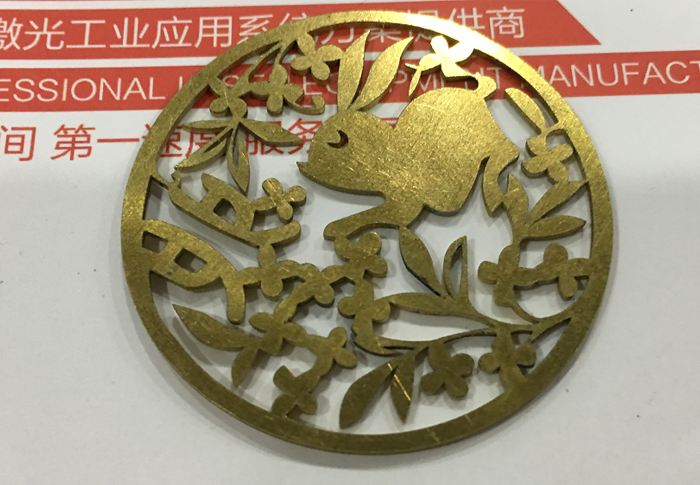

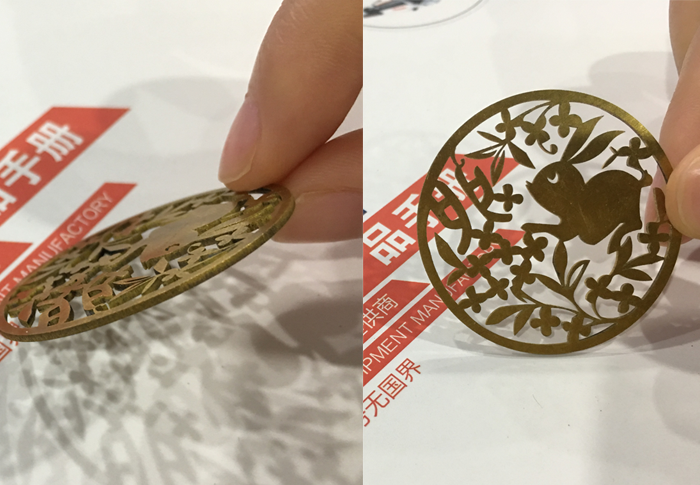

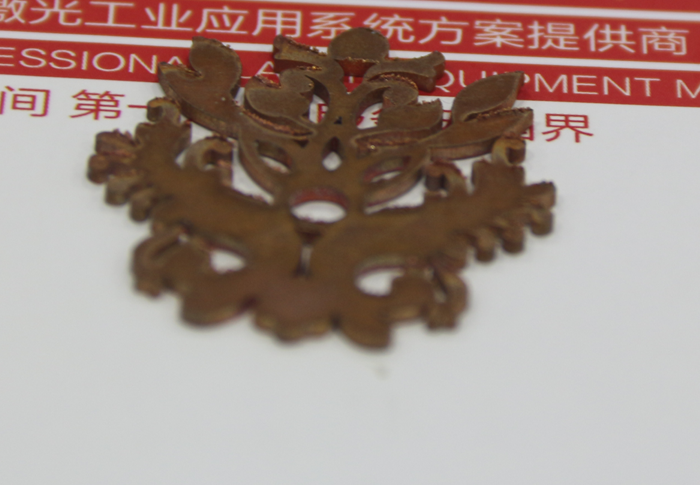

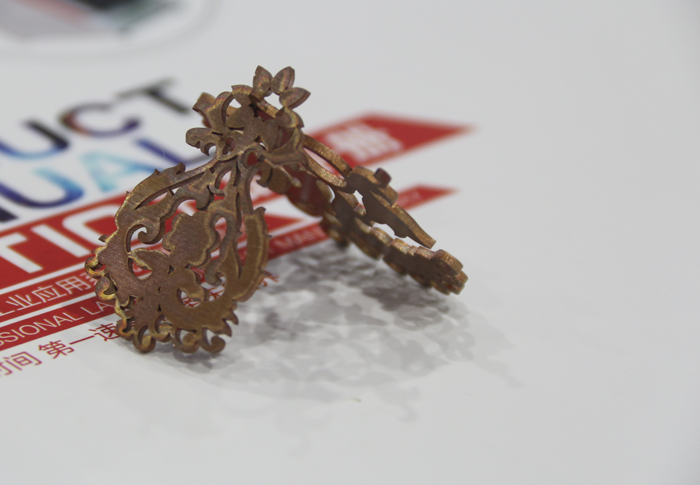

A CP series laser cutting machine supports 1000W–2000W laser power and is specially designed for the jewelry industry, offering a compact structure and a small working area ideal for precision metal cutting. This 1500W nLIGHT fiber laser cutting machine with a 600×400 mm worktable can cut 2 mm brass cleanly, and pairs perfectly with a 50W fiber laser marking machine to create detailed designs such as Bitcoin patterns. The nLIGHT laser source from the USA is engineered for high‑reflective metals like aluminum, gold, silver, and brass—materials that easily damage ordinary lasers due to back‑reflection. Unlike standard lasers, nLIGHT and German IPG sources feature anti‑reflection technology, preventing laser burnout and ensuring stable, high‑quality cutting. For frequent cutting of gold, brass, and aluminum, nLIGHT is the recommended choice for improved efficiency and durability.
Anti‑Reflection Technology
Prevents laser damage when cutting gold, silver, brass, and aluminum.
High Cutting Power
Supports 1000W–2000W for fast, clean jewelry‑grade cutting.
Precision for Jewelry
Ideal for small parts, fine patterns, and detailed metalwork.
Stable USA nLIGHT Source
Reliable performance with superior results on reflective metals.
Benefits of fiber laser cutting include
Precise and repeatable high-quality cuts
High-speed cutting
Non-contact cutting – no degradation in cut quality
Minimal maintenance – high tool availability
Variety of lasers to cut non-metallic materials
Scalable process from micro cutting stents up to shaping structural steel
Easily automated for maximum productivity
Improve your cutting speed and precision – contact a local IPG laser cutting engineer to learn how.

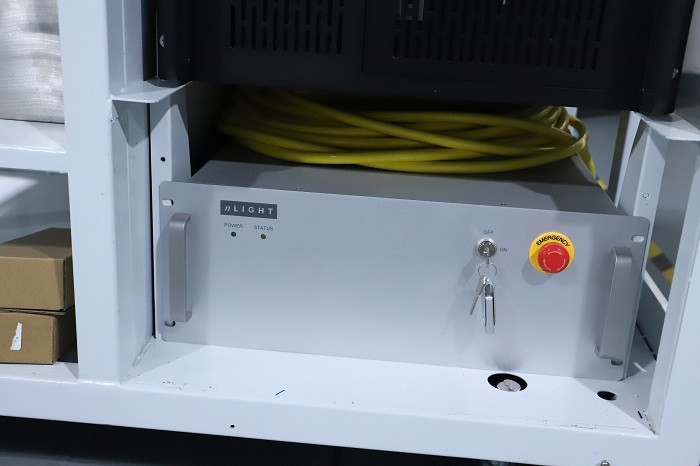

nLIGHT brand laser source
At nLIGHT, we verified our back-reflection solution with real-world application testing over thousands of operations with the same conditions our customers run our lasers everyday.

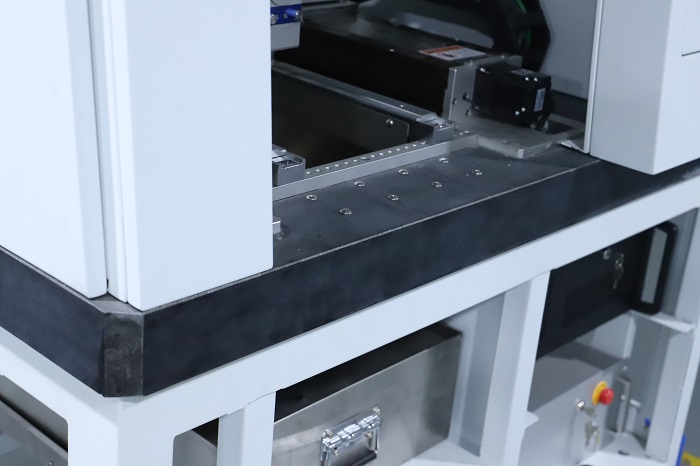

120mm thickness marble working table
Due to precision laser cutting machines require very high cutting accuracy, the actual cutting accuracy of industrial laser cutting machines is 0.02mm to 0.05mm, while the progress of precision laser cutting machines needs to reach 0.01mm. In order to achieve very high progress, we use 120mm marble work The table ensures the stability of the precision cutting machine and the cutting progress. The 120mm thickness of the marble is purchased according to the size of the corresponding size.

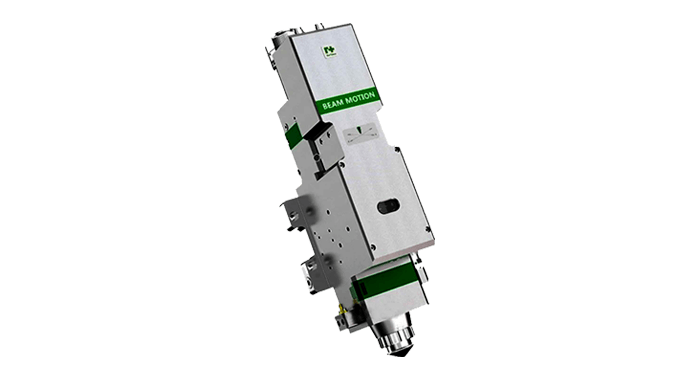

RayTools Auto-Focus cutting head
BM110 series is an automatic focusing fiber cutting head launched by Swiss RAYTOOLS AG in 2019. The product has a built-in motor drive unit. The focus lens is driven by a linear mechanism to automatically change the position within 24mm. The user can set the continuous focus through the program to complete the rapid perforation of thick plates and automatically cut plates of different thicknesses and materials. The product is equipped with a D30 compound lens group to integrate the beam, and optimizes the optical and water-cooled design so that the laser head can work continuously and stably for a long time under high power.

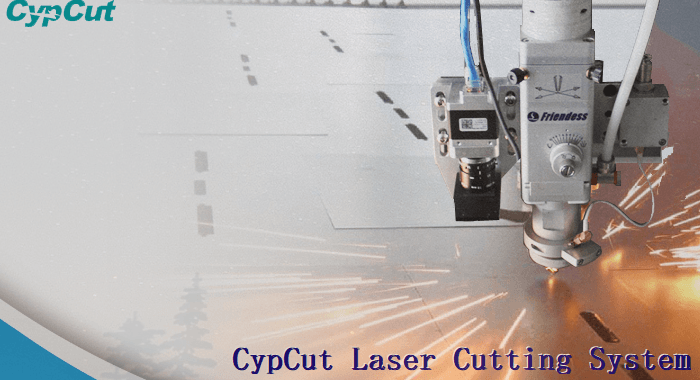

CypCut Control System
Support up to 5-stage piercing technique, segment and stepping piercing patterns. Support the communication with mainstream laser brands on the market. Support basic technique of Fly cut, frog-leap lifting, kerf width compensation, lead line, micro-joint, pre-piercing, film cutting etc. Support advanced functions of find workpiece edge, auto focus control, dual shuttle, break point locate, QR code generation, remnant split, round tube cutting etc. Provide fine cutting technique, smooth start and end in the toolpath cutting. Support intelligent barrier avoidance, laser head frog-leap lifting in production. Support scan QR import drawing, task scheduling, and multi-area production etc。
| Model | HS-CP4020 | HS-CP6040 | HS-CP6060 | HS-CP1390 |
| Working Area | 400*200mm | 600*400mm | 600*600mm | 1300*900mm |
| Laser power | 1000W – 2000W | |||
| Acceleration | 2.0 G | |||
| Linkage Speed | 140 m/min | |||
| Positional Accuracy | ±0.02 mm | |||
| Re-positional Accuracy | ±0.01mm | |||
| Voltage | 380V/50Hz/3Phase | |||
