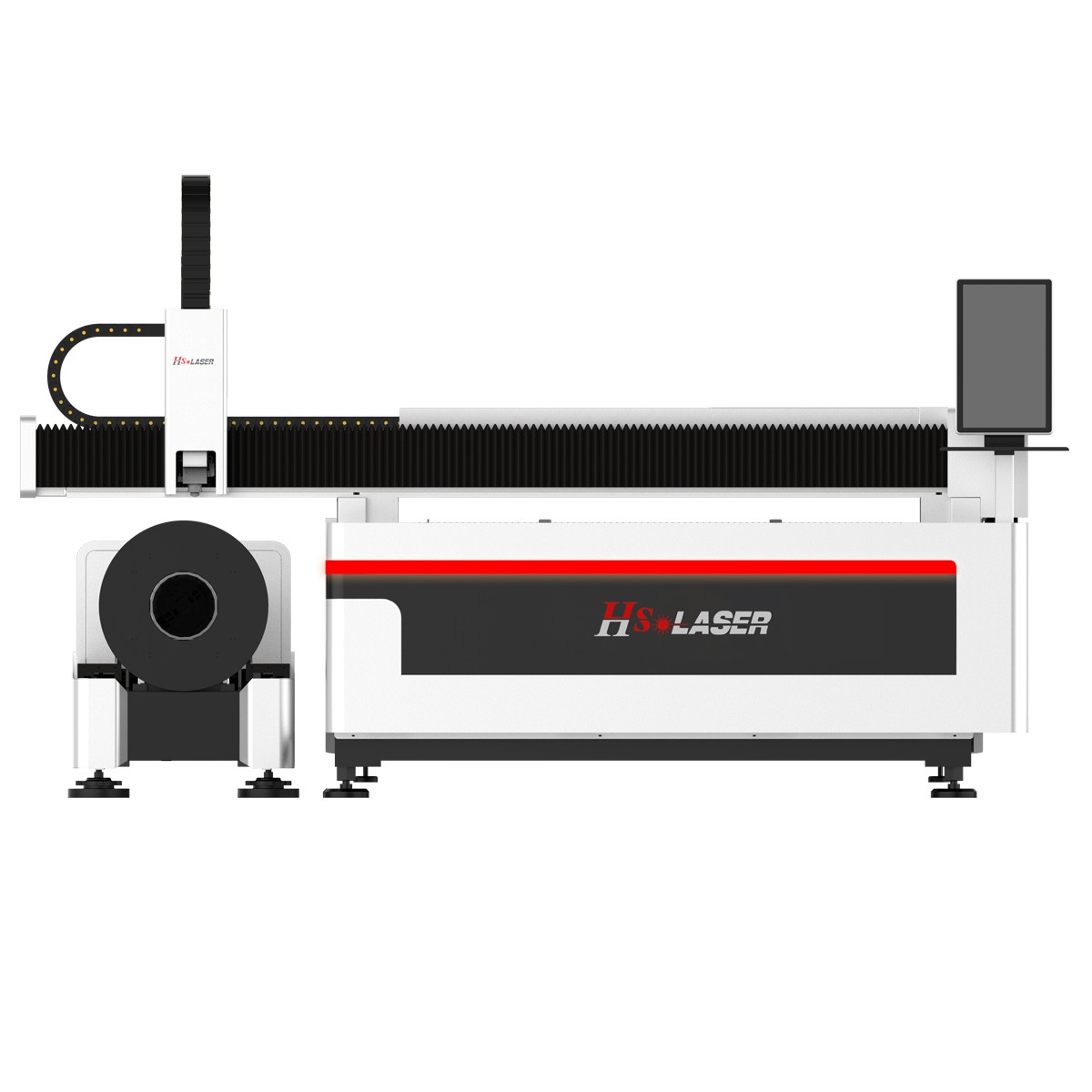

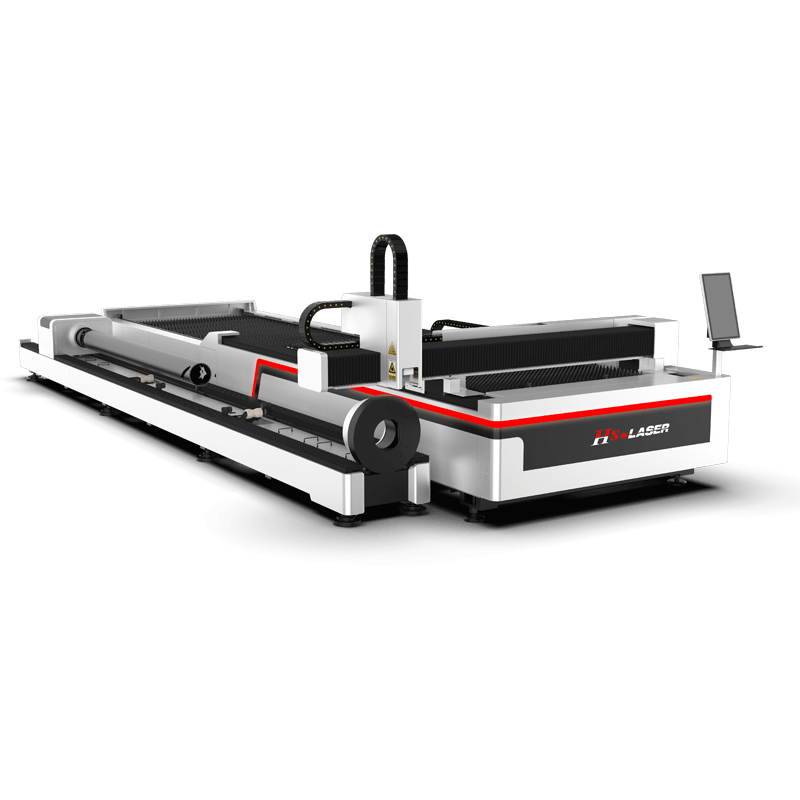

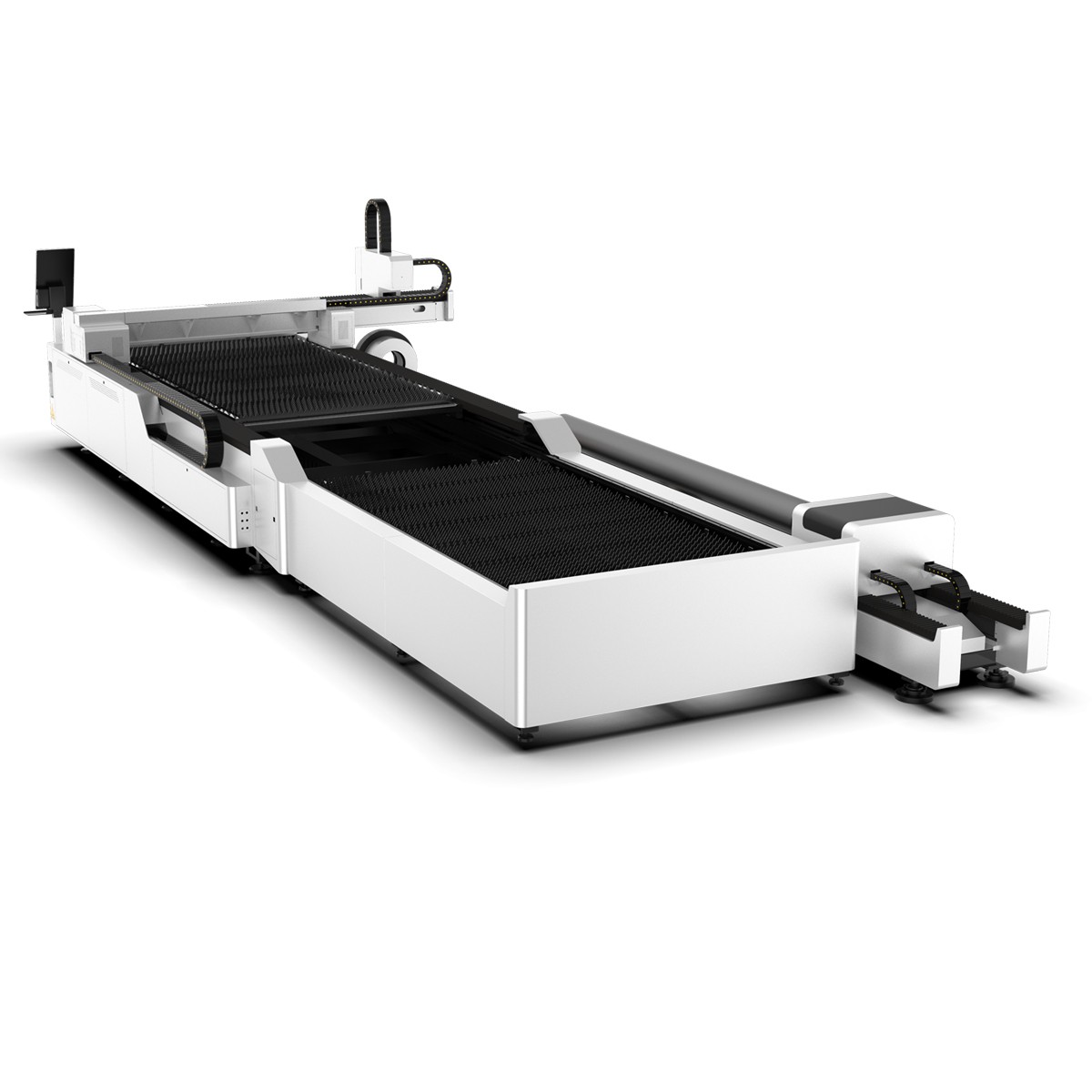

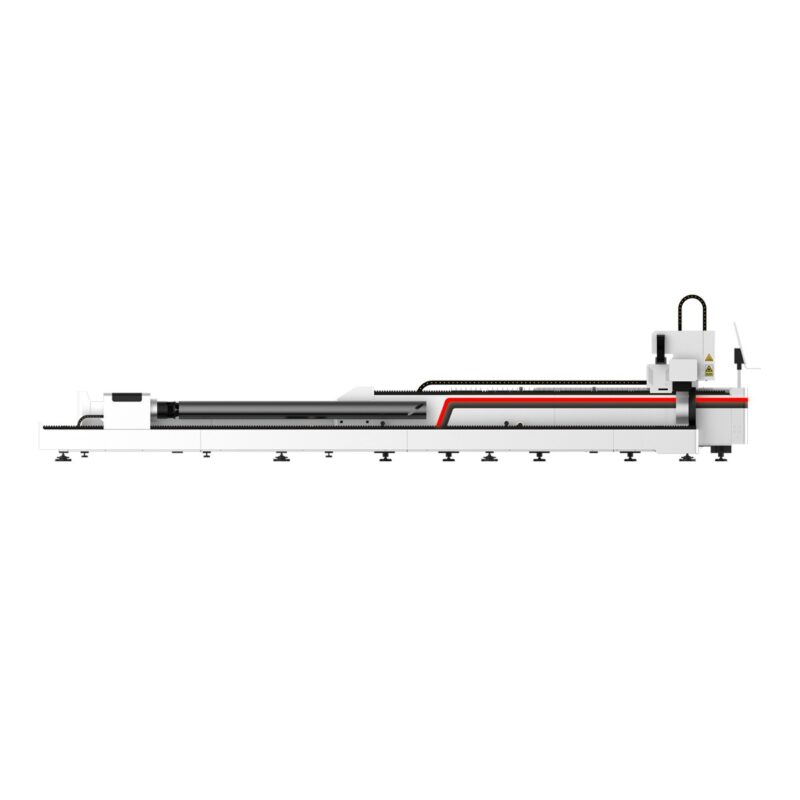

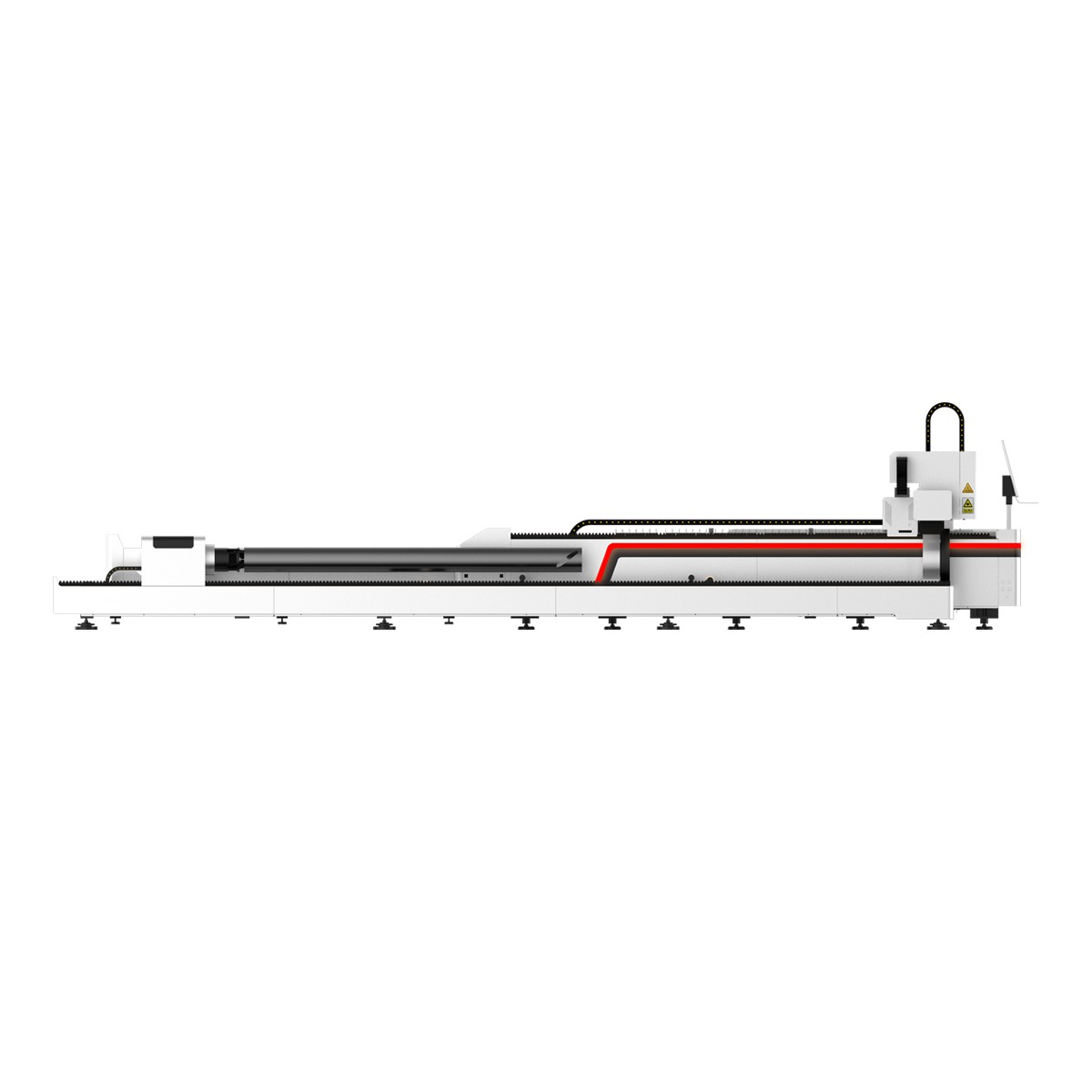

Plate and pipe laser cutting machine
An open‑type laser cutting system with exchange working table provides fast, efficient metal processing with a powerful 4000W maximum laser output. Its dual exchange working table design boosts productivity by allowing loading and unloading during cutting, while supporting 3000 mm to 6000 mm metal pipe lengths for versatile fabrication needs. This structure is ideal for workshops requiring high‑speed cutting, stable performance, and continuous operation on large metal sheets and tubes.
Laser Power: 1000W 1500W 2000W 3000W 4000W
Model Number: HS-CET1530 HS-CET1545 HS-CET1560 HS-CET2040
Fiber Laser Cutting Machine System with HS-CET series
A CH series laser cutting machine supports 1000W–4000W laser power and is built for efficient sheet‑metal and tube processing. The HS‑CET model features an exchange working table for nonstop production and supports metal pipe lengths up to 6000 mm (standard 3000 mm). Plate‑cutting formats include 1500×3000mm, 1500×4500mm, 1500×6000mm, and 2000×6000mm, making it suitable for medium‑ to large‑format fabrication with stable, high‑speed performance.
Wide Power Range
Supports 1000W–4000W for cutting thin to thick metal sheets.
Exchange Table Efficiency
Dual‑table design enables continuous cutting with reduced downtime.
Long Pipe Support
Handles 3000–6000 mm pipes for versatile tube‑cutting tasks.
Large Sheet Formats
Multiple working areas for different production scales and materials.

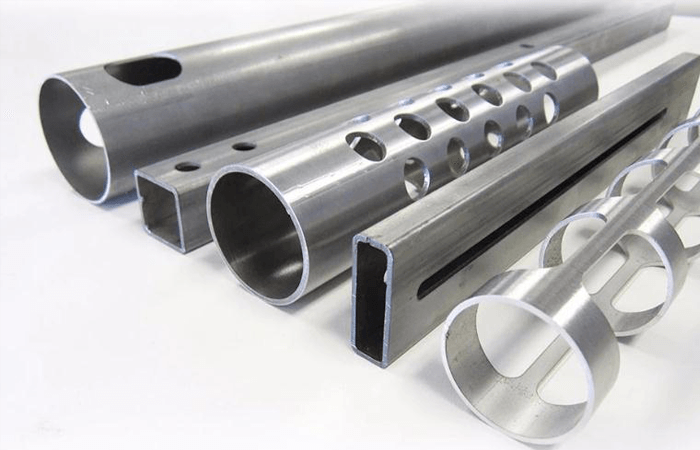

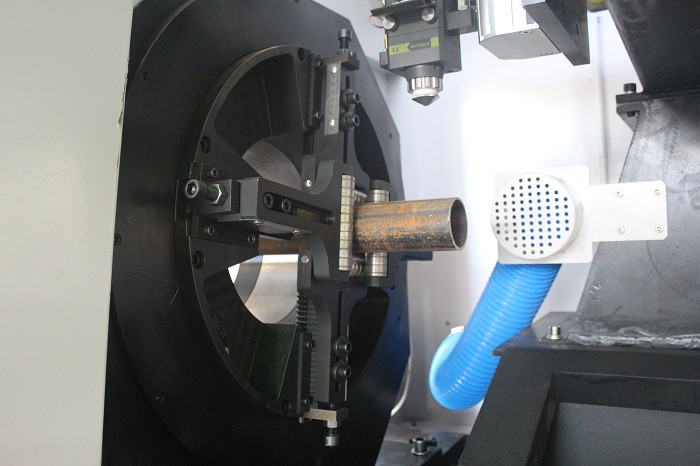

Plate and Pipe Laser Cutter System
T160: Round tube: Φ16-Φ155mm
Square tube: □16-□110mm
Oval tube: circle diameter≤155mm
T220: Round tube: Φ20-Φ220mm
Square tube: □20-□150mm
Oval tube: circle diameter≤220mm
Metal pipe lenght: 3000mm / 6000mm optional
Benefits of fiber laser cutting include
Precise and repeatable high-quality cuts
High-speed cutting
Non-contact cutting – no degradation in cut quality
Minimal maintenance – high tool availability
Variety of lasers to cut non-metallic materials
Scalable process from micro cutting stents up to shaping structural steel
Easily automated for maximum productivity
Improve your cutting speed and precision – contact a local IPG laser cutting engineer to learn how.

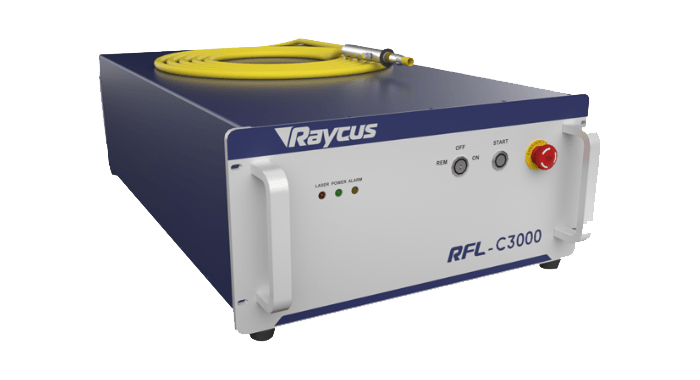

Raycus or Maxphotonic brand laser source
With the rapid development of the laser industry, the Chinese brand laser Raycus Max has become a low- and medium-power customer first. Its advantages are affordable, strong laser stability, low maintenance costs, and long service life.

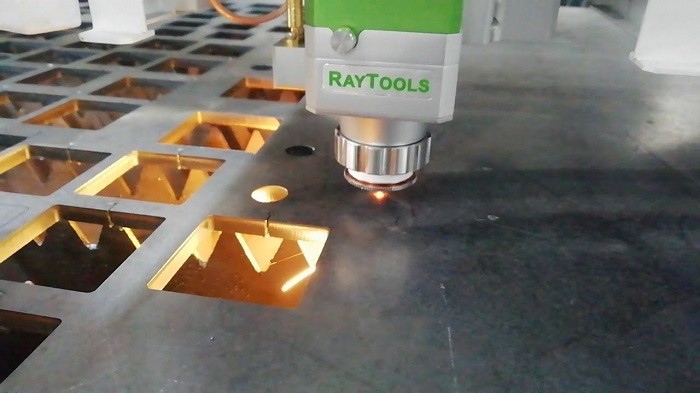

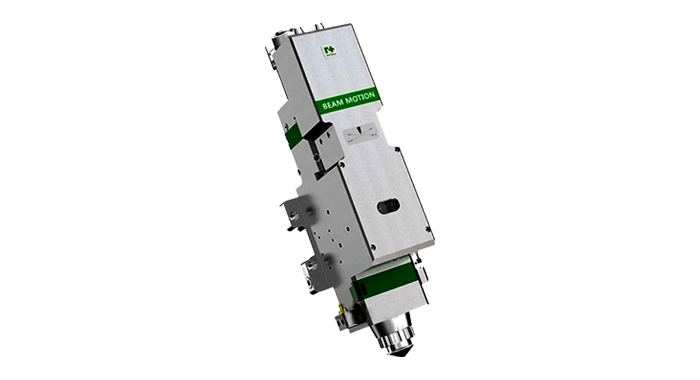

RayTools Auto-Focus Cutting Head
BM110 series is an automatic focusing fiber cutting head launched by Swiss RAYTOOLS AG in 2019. The product has a built-in motor drive unit. The focus lens is driven by a linear mechanism to automatically change the position within 24mm. The user can set the continuous focus through the program to complete the rapid perforation of thick plates and automatically cut plates of different thicknesses and materials. The product is equipped with a D30 compound lens group to integrate the beam, and optimizes the optical and water-cooled design so that the laser head can work continuously and stably for a long time under high power.

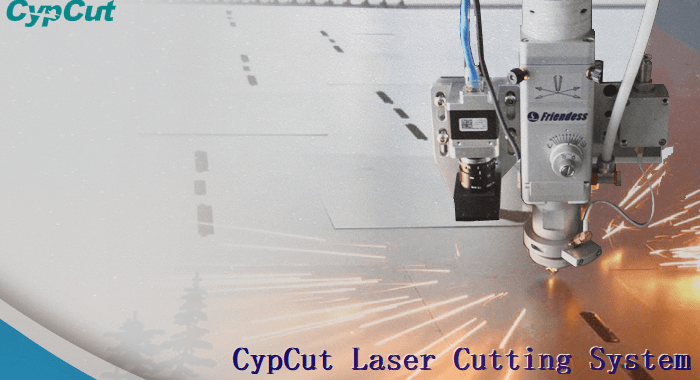

CypCut Control System
Support up to 5-stage piercing technique, segment and stepping piercing patterns. Support the communication with mainstream laser brands on the market. Support basic technique of Fly cut, frog-leap lifting, kerf width compensation, lead line, micro-joint, pre-piercing, film cutting etc. Support advanced functions of find workpiece edge, auto focus control, dual shuttle, break point locate, QR code generation, remnant split, round tube cutting etc. Provide fine cutting technique, smooth start and end in the toolpath cutting. Support intelligent barrier avoidance, laser head frog-leap lifting in production. Support scan QR import drawing, task scheduling, and multi-area production etc。
| Model | HS-CH1530 | HS-CH2040 | HS-CH2060 | HS-CH2560 |
| Working Area | 1500*3000 mm | 2000*4000 mm | 2000*6000 mm | 2500*6000 mm |
| Laser power | 1000W – 4000W | |||
| Acceleration | 1.5 G | |||
| Linkage Speed | 120 m/min | |||
| Clamping Range | Ø20- 220mm | |||
| Processing Length of the Pipe | 3000mm / 6000mm | |||
| Voltage | 380V/50Hz/3Phase | |||
