Pipe laser cutting machine
A metal pipe laser cutting system is designed for high‑precision processing of tubes and profiles, supporting square, round, rectangular, and polygonal pipes with smooth, accurate cutting performance. With a maximum round tube diameter of 350 mm, this exclusive pipe‑cutting machine delivers stable operation, fast cutting speed, and clean edges—ideal for metal fabrication, furniture manufacturing, fitness equipment, and structural applications requiring consistent tube‑cutting quality.
Laser Power: 1000W 1500W 2000W 3000W 4000W
Model Number: HS-CT160 HS-CT220 HS-CT230 HS-CT350

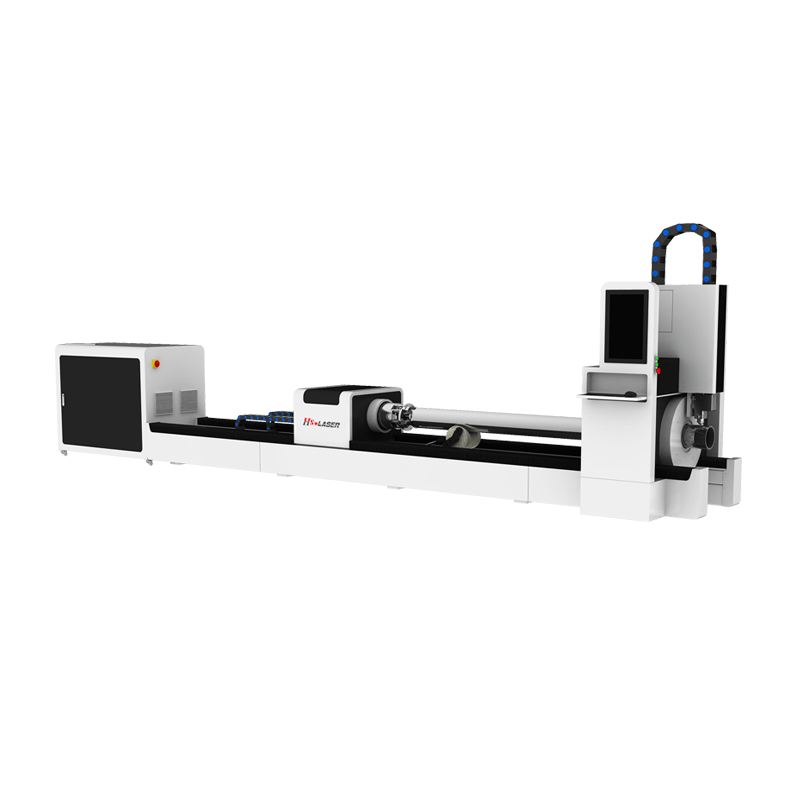

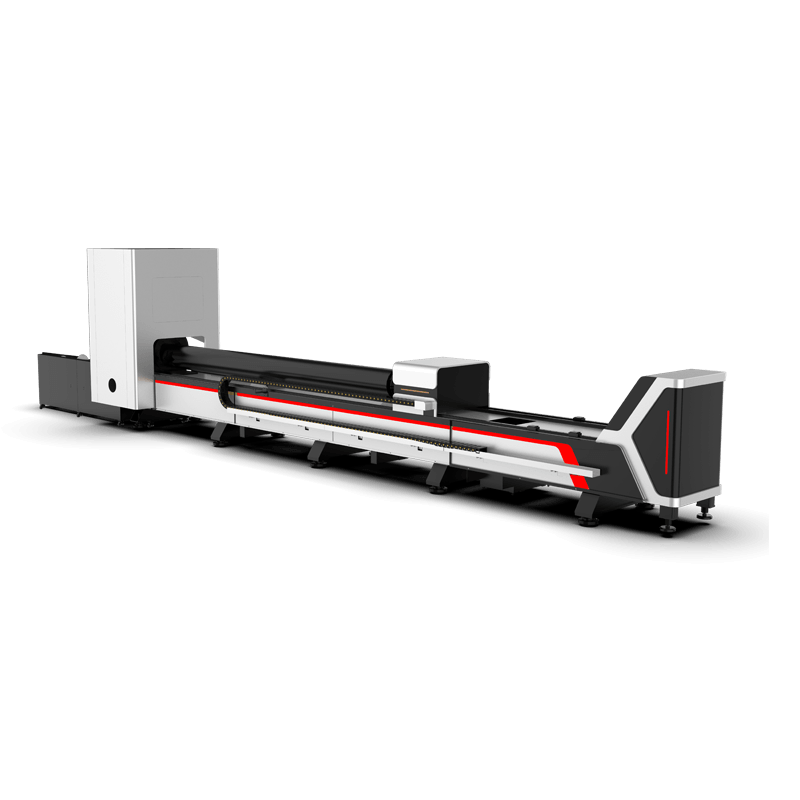

Laser Tube Cutting Machine with HS-CT series
A metal pipe laser cutting machine is widely used across mechanical engineering, system construction, and the furniture industry, offering designers new possibilities as laser technology becomes the preferred method for processing tubes and profiles. The HS LASER tube‑cutting system provides a complete solution for cutting round, square, rectangular, and polygonal pipes made from stainless steel, steel, aluminum, and other metals. With high precision, clean edges, and strong versatility, laser tube cutting continues to grow in demand as industries shift toward faster, more accurate, and more flexible manufacturing.

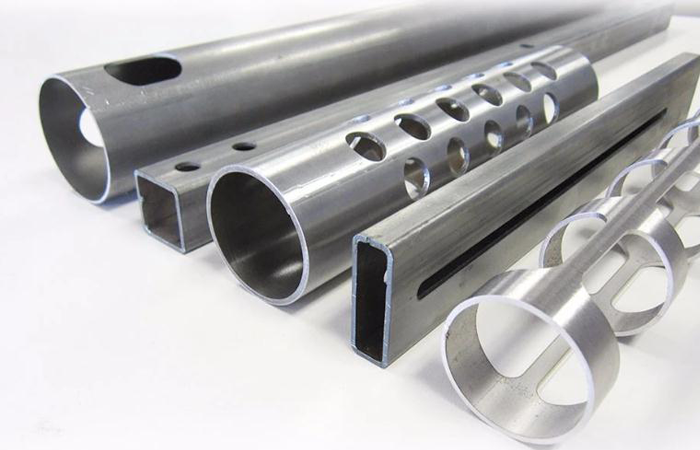

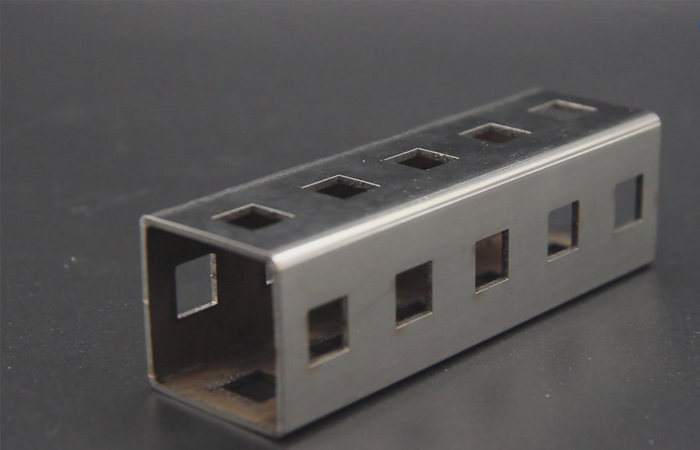

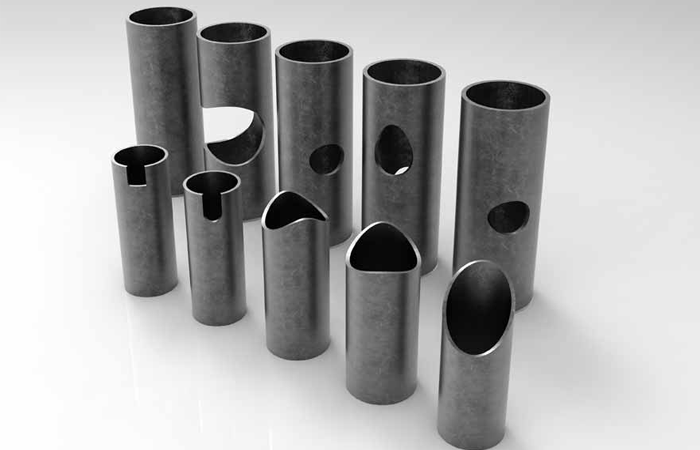

Multi-Shape Tube Cutting
Supports round, square, rectangular, and polygonal metal pipes.

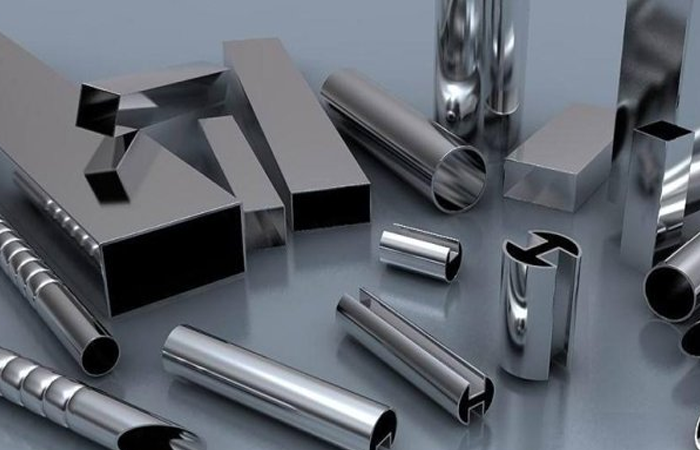

Wide Material Compatibility
Ideal for stainless steel, steel, aluminum, and various metal tubes.

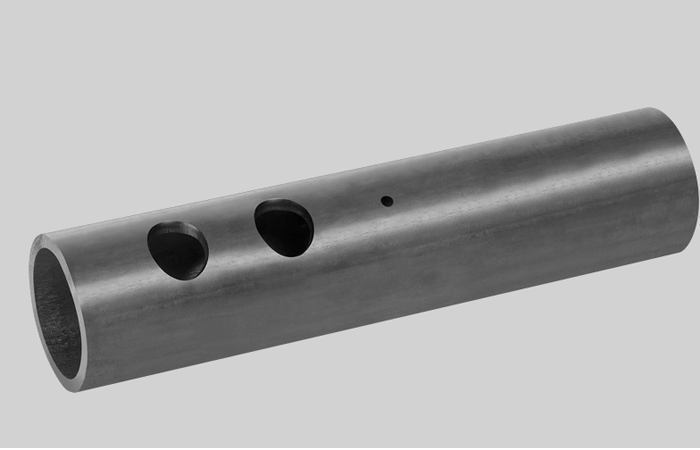

High Precision & Clean Edges
Delivers accurate cuts with smooth edges for industrial applications.

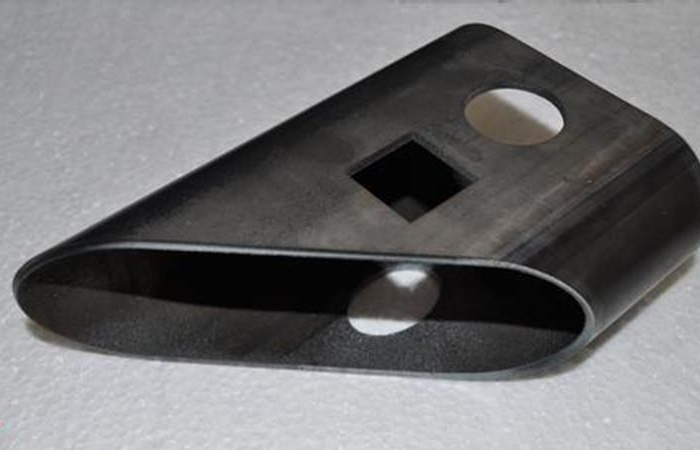

Complete Tube‑Cutting Solution
Designed for engineering, construction, furniture, and custom fabrication.
Benefits of Laser Tube Cutting Include
Precise and repeatable high-quality cuts
High-speed cutting
Non-contact cutting – no degradation in cut quality
Minimal maintenance – high tool availability
Scalable process from micro cutting stents up to shaping structural steel
Easily automated for maximum productivity

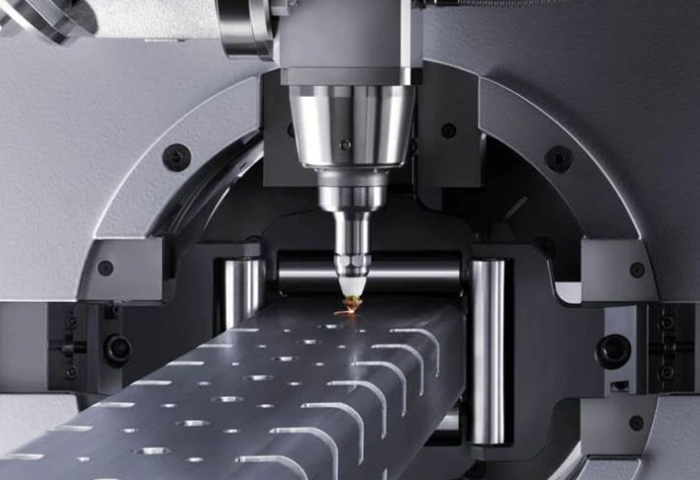

Improve your cutting speed and precision

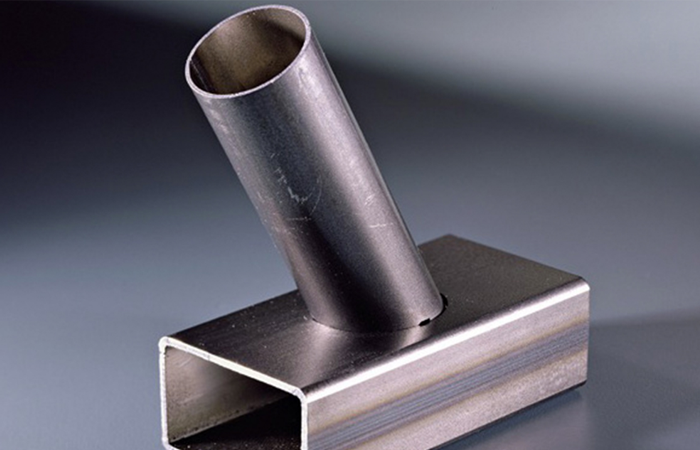

Various pipe cutting, pipe processing, furniture industry, fitness equipment industry, construction industry,metal pipe handicrafts and other fields use pipe to assemble finished productsVarious pipe cutting, pipe processing, furniture industry, fitness equipment industry, construction industry, metal pipe handicrafts and other fields use pipe to assemble finished products

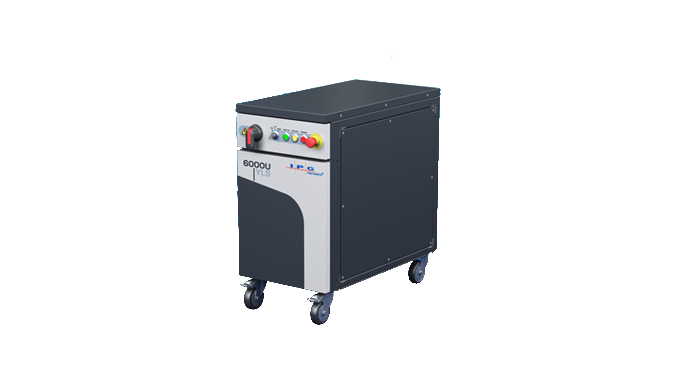

IPG Laser Source
IPG’s family of kW class YLS-CUT lasers has been specifically designed for high performance in harsh cutting environments. The YLS-CUT series features a super compact design with the laser housed in an hermetically sealed cabinet. A dehumidifier is installed within the cabinet to ensure optimal internal humidity. Due to continuous design improvements, the industry-leading wall-plug efficiency has reached over 40% in 2015. The electrical cost savings add up to many tens of thousands of dollars over lifetime of a laser. Hot redundancy ensures 100% up time with no change in power, record reliability and maintenance-free operation. The CUT series lasers are available up to 20 kW output power with a wide variety of fiber delivery options, starting at 50 μm core diameter. YLS-U is the latest super-compact hermetic cabinet packaging of kW-class lasers in power 1-10 kW range incorporating all of the features and technology advancements of YLS-CUT series. YLS-U Series lasers are also available with the High Peak Power (HPP) option enabling faster and cleaner piercing, increased quality of fine feature cutting and denser part nesting

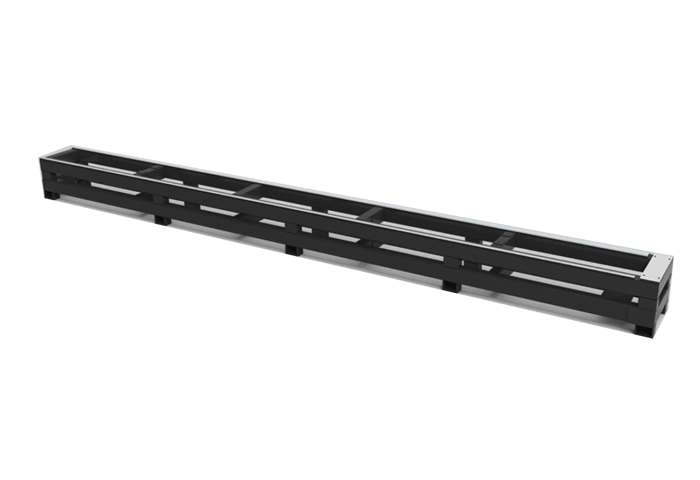

About the machine structure process
15-18mm thick plates cutting Welding (Heat Process) High Temperature failure Release the pressure of internal under over environment.
Rough Manching Removing the welding slag, milling out the shape of machine bed, making the processing surface for finish machining
Finish machining 9 meters milling machine, ensure the referencefor installation of rails, racks etc., positioning holes, installation holes etc.
Detecting the maching accuracy, parallelism, straightness etc., by adding meters on the milling machine Blasting treatment Removing the oxide layer/rust etc.
on the machine bed& Paint spaying Adding serial numbers,each machine bed has its own serial
There are some casting iron bed in the market, under such condition of laser cutting machine market nowaday, this is just a marketing method finding difference.
If cast iron bed is better, why Trumpf, Amada, Bystronics etc. still insists on plate welding bed.

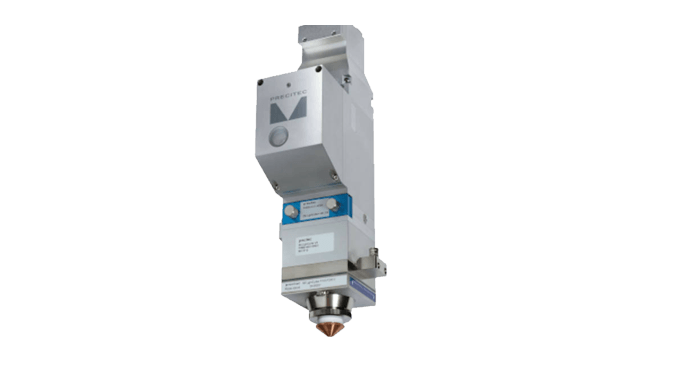

Precitect Auto-Focus Cutting with LightCutter 2.0
The LightCutter 2.0 is the ideal solution for all laser cutting applications in the medium power range up to 6 kW. Whether 2D, 2.5 – thanks to its wide range of variants you will always find the most efficient and economical configuration. It is characterized by high cutting qualities for all metals up to 25 mm sheet thickness – especially for laser cutting of mild steel, stainless steel, and aluminum.

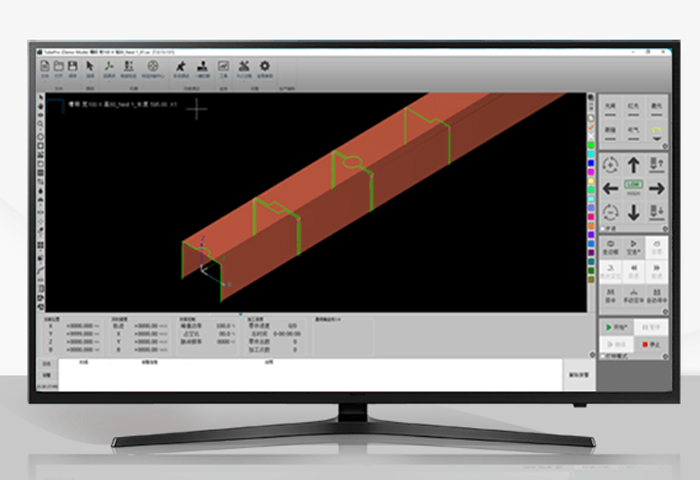

Cut Tube Control System
Cut Tube system is designed for tube cutting control, support standard tube(retangle, circle, oval, ellipse and obround etc.) , free form , and steel channels(T/U/H/L shape) production of high precision and efficiency.
Benefits
Cutting technique
Support offset tube center error in production to improve through holes cutting precision.
Support steel channels cutting.
Suppport seperate technique for corner cutting.
Support auto loading/unloading process, cycle production and automatic tube feeding.
Control performance
Open-loop control system, Friendess 5th generation motion control algorithms.
Trajectory accuracy 0.02mm, positioning accuracy 0.001mm, repeatability 0.003mm.
Access encoder feedback in real time, to compare command and machine toolpath.

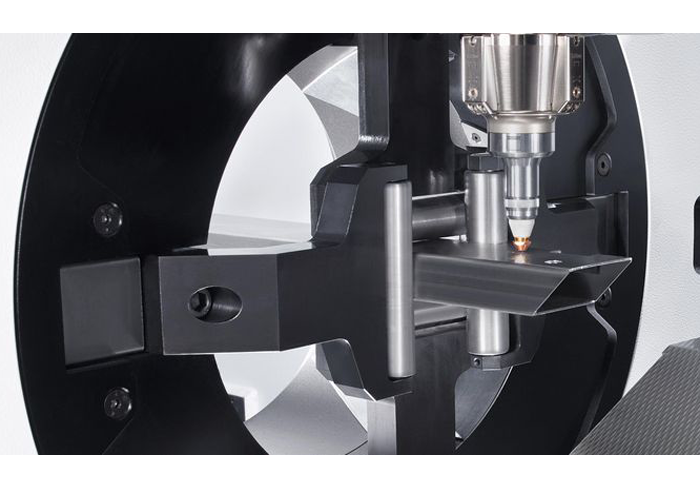

Laser Tube Cutting Chuck
We designed 4 different cutting system, HS-CT160
Round tube: Φ16-Φ155mm
Square tube: □16-□110mm
Rectangular tube: circumscribed circle diameter≤155mm
HS-CT220
Round tube: Φ20-Φ200mm
Square tube: □20-□150mm
Rectangular tube: circumscribed circle diameter≤200mm
HS-CT230
Round tube: Φ20-Φ220mm
Square tube: □20-□150mm
Rectangular tube: circumscribed circle diameter≤220mm
HS-CT350
Round tube: Φ20-Φ345mm
Square tube: □20-□240mm
Rectangular tube: circumscribed circle diameter≤345mm
| Model | HS-CT160 | HS-CT200 | HS-CT230 | HS-CT350 |
| Tube length | 6000mm | 6000mm | 6000mm / 9000mm | 6000mm / 9000mm |
| Laser power | 1000W – 4000W | |||
| Acceleration | 1.2G | |||
| Maximum speed of chuck feeding shaft | 120m/min | |||
| Maximum speed of laser head moving axis | 90m/min | |||
| Z axis maximum speed | 60m/min | |||
| Maximum blanking length | 2m | |||
