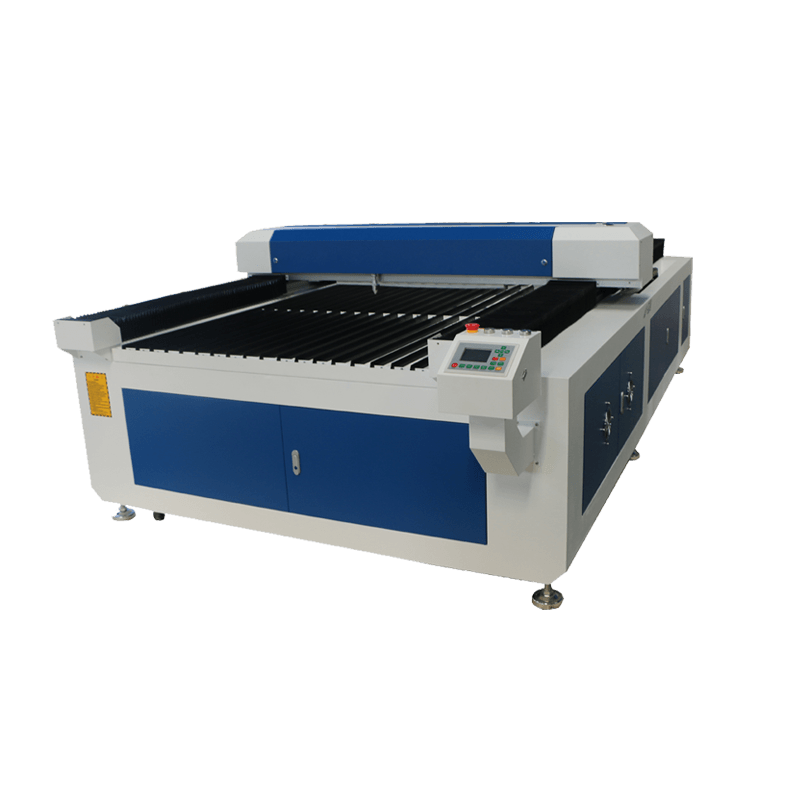

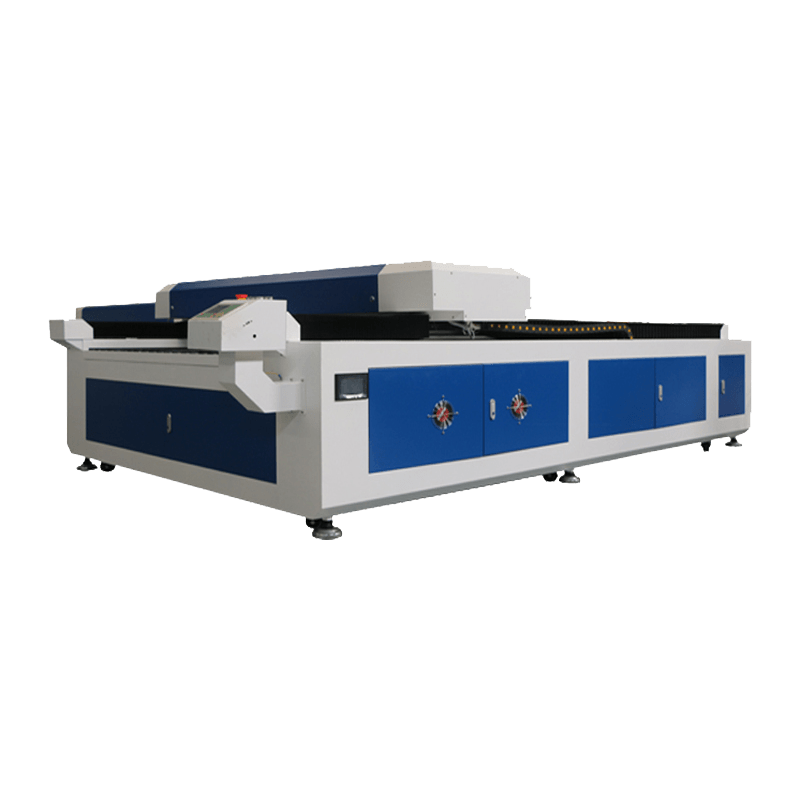

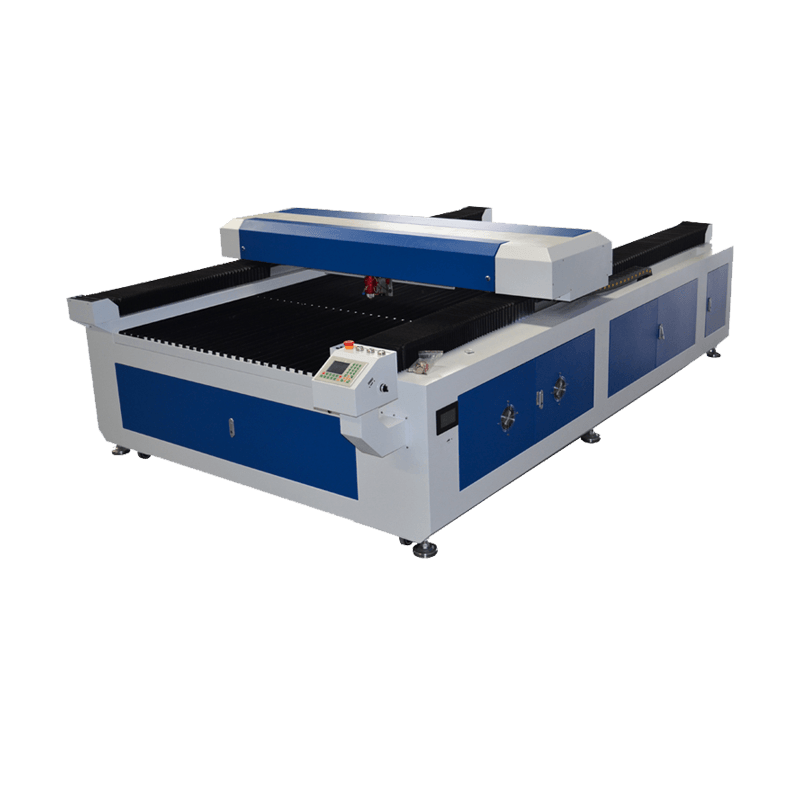

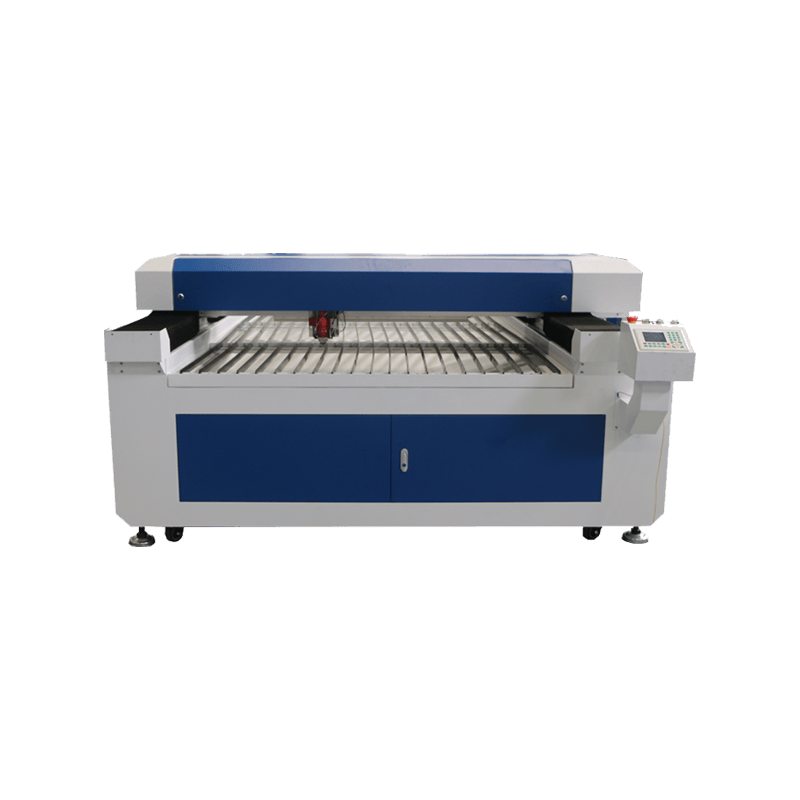

Co2 mixed laser engraving and cutting machine
A customized CO₂ laser engraving machine offers flexible working‑area options and easy operation for businesses needing precise engraving and cutting. It supports various materials such as wood, acrylic, leather, rubber, and plastics, while the CO₂ mixed engraving and cutting system allows both non‑metal engraving and 300W mixed CO₂ metal cutting. This makes it a versatile, cost‑effective solution for workshops handling diverse engraving and light‑metal cutting tasks.
Laser Power: 100w 130W 150W 180W 300w
Model Number: HS-CO100 HS-CO130 HS-CO150 HS-CO180 HS-CO300
What is application can do by Co2 laser engraving cutting machine
A multi‑purpose CO₂ laser engraving and cutting system delivers high‑precision results across a wide range of materials, making it ideal for signage, crafts, awards, and light‑industrial production. It can cut stainless steel and carbon steel, perform award engraving, and handle wood, glass, acrylic, and leather engraving and cutting with clean, detailed output. This versatility makes CO₂ laser machines a powerful solution for businesses needing reliable, flexible, and cost‑effective material processing.

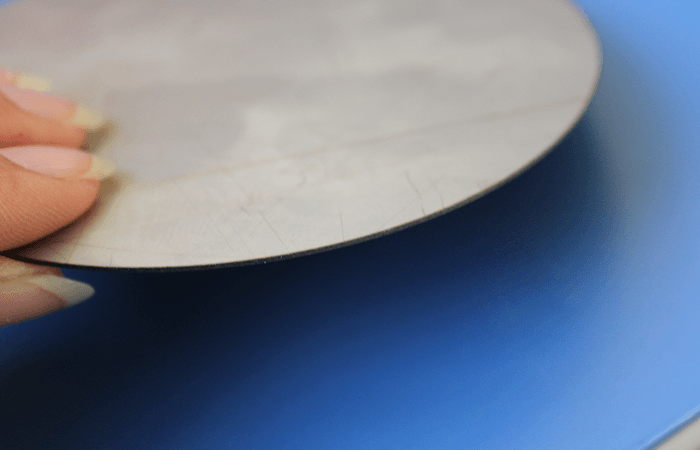

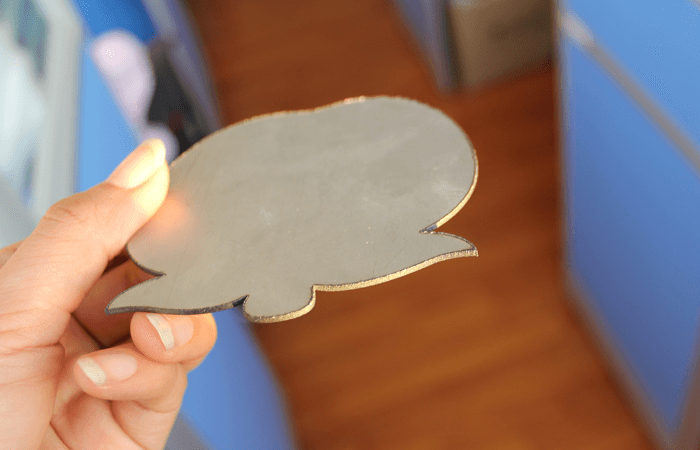

Metal Cutting Capability
Cuts stainless steel and carbon steel for light‑metal applications.
Versatile Engraving
Perfect for award plaques, trophies, and personalized gifts.
Multi‑Material Processing
Engraves and cuts wood, glass, acrylic, leather, and more.
Signage Production
Ideal for creating detailed signs, letters, and display elements.
How does a Co2 Laser Work
Let’s dig into the nitty-gritty. There is a lot of magic (and science!) involved in this tool that will give your business the
capability to transform any object into a prized possession.
In a Co2 laser cutter, light is produced when electricity runs through a gas-filled tube with mirrors at both ends.
One mirror is fully reflective while the other one lets some light come through. These mirrors guide the laser beam
into the material that is to be cut. The gas is typically a mixture of carbon dioxide, nitrogen, hydrogen, and helium.
Any light produced by Co2 lasers is extremely powerful compared to normal light. This is because of the
mirrors that bookend the tube of gases. These mirrors reflect most of the light traveling through the tube and
cause the light waves to build in intensity. The light only passes through the partially reflective mirror when it
becomes bright enough. Since the light from a laser is infrared, it is invisible to the human eye. It also has a
very long wavelength. It can cut a variety of materials, including cloth, wood, metal, glass, and paper. The intense
heat from this light vaporizes the material that is going to be cut, leaving an accurate, smooth finish.
Depending on the look you are going for on your material and what material you are cutting or engraving,
the speed and power settings can be decreased and increased. Testing your material beforehand is a
good practice and will get you closer to perfect results, every time.
Glass Laser Tube
Adopting our own patented technology to modify the beam size and beam quality with a physical approach, which solves the beam distortion, increased the output power. Inner lens upgraded. All inner lens and mirror are imported and customized by the U.S.II-VI Infrared. Yongli adopts new catalytic technology to enhance the coating firmness of discharge tube and catalytic consumption. The As laser tubes are more stable on longtime and continue laser working and lifespan is longer. A6s and A8s are capable of cutting thin metal and thick non-metal materials with a better cutting performance.
Control System with Ruida
RuiDa control system with RDC6445
Technical Parameters:
1. 4-way motor interface, output maximum 400KHZ frequency; drive capacity 20mA, common anode interface;
2. On-board 128M non-releasable memory;
3. USB maximum transfer rate is 12M, the longest distance is 5 meters;
4. The maximum transmission rate of the network cable is 100M, and the maximum transmission distance is 200M;
5. Linear / circular / B-spline interpolation accuracy +/- 0.5 pulse;
6. 4 general-purpose opto-isolated OC gate outputs, with a maximum driving capacity of 300mA (with freewheel protection), can
directly drive 24V / 5V DC relays
7. 4 universal photoelectric isolation inputs, compatible with 5V / 12V / 24V logic level;
Function description:
1. Support up to 4 servo / stepper motor control;
2. Supports one extended serial port, which can communicate with EPLC-400, wireless handheld devices (BWK201R, BWK301R), and other
devices with RS232 standard interface;
3. Support 4 OC gate outputs, can directly drive 5V / 24 relay;
4. Support mobile APP;
5. Support dual-head electric mutual shift control and super-format split cutting processing;
6. Support dual-head asynchronous processing;
7. Support large format vision, mark point visual cutting and projection cutting and other processing methods.
Knife Plate Working Table
Knife plate working table main engraving wood ,hard paper,acrylic,glass plastic and plywood.Knife plate working table is standard configuration.
Honeycomb Working Table
Honeycomb Working Table main engraving software materials, like leather,cloth,paper,jeans.Honeycomb working table is option part.
| Technical Parameters | |
| Model number: HS-CO100 HS-CO130 / HS-CO150 HS-CO180 / HS-CO300 |
Control system:Ruida |
| Laser power: 100W 130W 150W 180W 300W | Working voltage:AC 110 – 220V±10%, 50 – 60Hz or depend on customer |
| Working area: 1300x900mm (51.1″ x 35.4″) 1400x900mm(55.1″ x 3.4″) 1600x1000mm (63″ x 39.3″) 1300x2500mm(51.1″ x 98.4″) |
Operating temperature:0-45 degree |
| Laser wavelength: 1064nm | Operating humidity:5-95% |
| Resetting Positioning Accuracy: 0.02mm | Radiation protection: Anti-laser acrylic material |
| Driver Motor:Leadshine Driving System And Stepper Motor | Compatible Software:Laser work CorelDraw, AutoCAD, Photoshop |
| Laser type: Glass laser tube | Guarantee time:1 year, laser tube 10 months |
| Interface:USB | Operation: Send manual video and user manual |
| Resolution ratio:≤0.0125mm | |
| CO2 hybrid mix laser cutting machine working capacity | |||
| Material | Cut | Material | Cut |
| Wood | √ | Pressboard | √ |
| Acrylic | √ | Rubber | √ |
| Fabric | √ | Wood Veneer | √ |
| Glass | Fiberglass | √ | |
| Coated Metals | √ | Painted Metals | √ |
| Ceramic | Tile | ||
| Delrin | √ | Plastic | √ |
| Cloth | √ | Cork | √ |
| Leather | √ | Corian | √ |
| Marble | Stainless steel | √ | |
| Matte Board | √ | Carbon Steel | √ |
| Melamine | √ | Galvanized Steel | √ |
| Paper | √ | Titanium | √ |
| Mylar | √ | Aluminum | |
| 150w-300w mainly cut and engrave lines | |||
| Do you have a materials you would like us to test ? | |||
