HS LASER fiber welding systems deliver superior precision compared to conventional methods. This non-contact process ensures zero equipment wear and minimal heat input, resulting in tiny heat-affected zones (HAZ) and zero part distortion. It is the ultimate solution for high-speed, high-quality joining across diverse materials and industries.

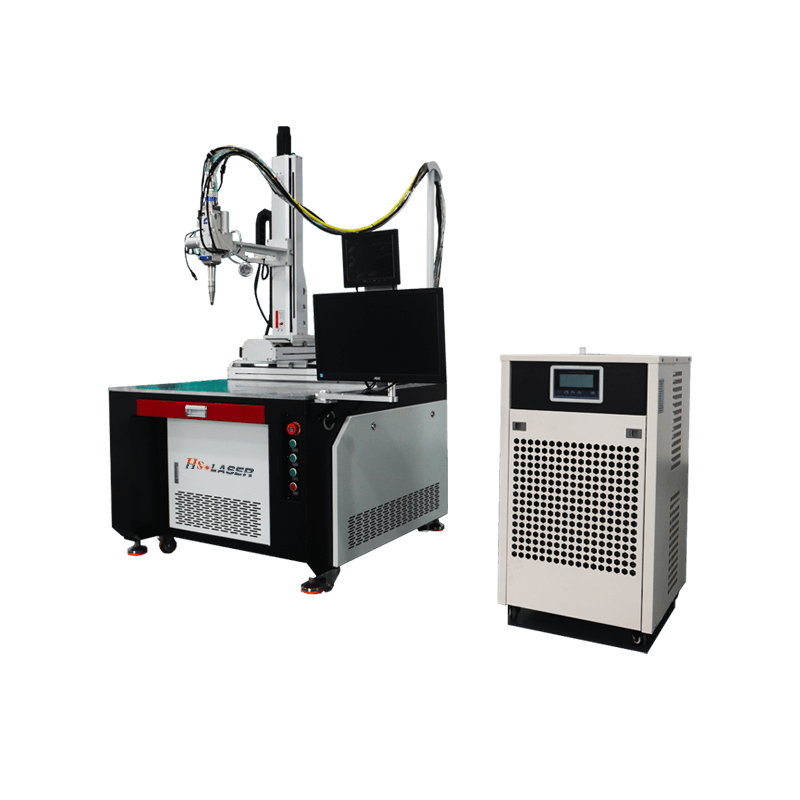

Automation Fiber laser welding machine with x y z axis
-
Suitable for all metal types and thicknesses
-
High-quality continuous fiber laser beam
-
High-speed welding with no secondary processing
-
Zero equipment wear or consumable usage
Laser Power: 1000W | 2000W | 3000W | 4000W | 6000W Model Number: HS-AW1000 | HS-AW2000 | HS-AW3000 | HS-AW4000 | HS-AW6000
Fiber laser welding system and advantage
Superior Precision & Reliability
Delivers high-speed, high-quality joins for diverse material combinations. The non-contact process eliminates consumable usage and equipment wear, ensuring long-term consistency and minimal maintenance in demanding industrial environments.
Reduced Costs & High Flexibility
Advanced fiber innovations combined with expert automated systems significantly improve welding speed and flexibility. This dual-focus on efficiency and precision reduces overall operational costs while maintaining industrial-grade weld integrity.

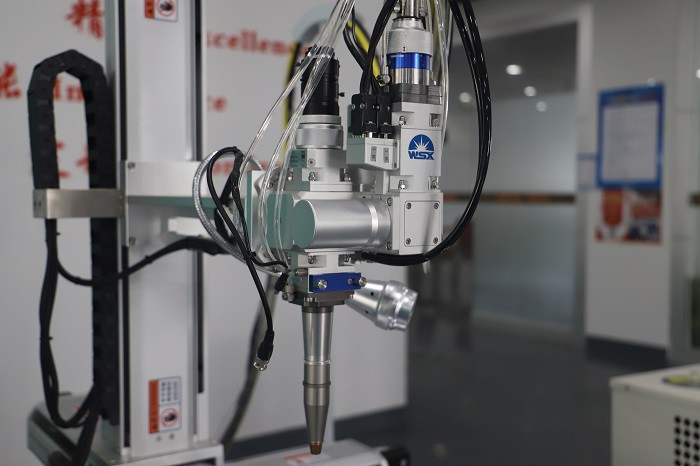

Wobble weld head advantage

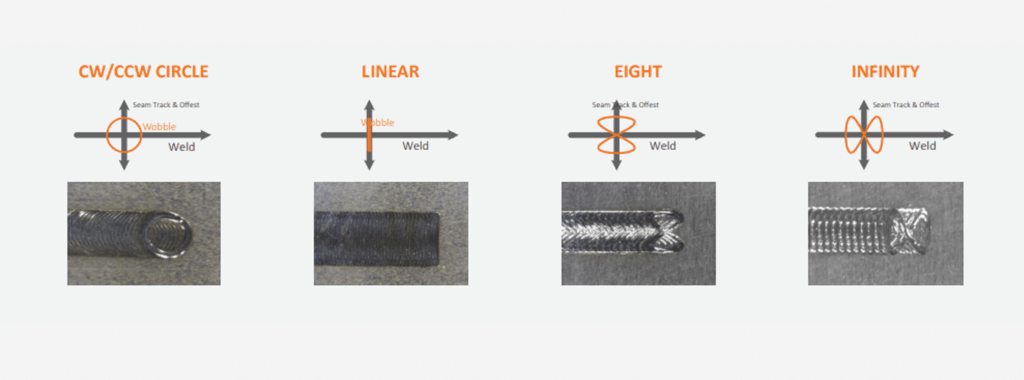

Wobble weld head can be adjusted laser beam width, frequency and wobble modes. In addition to the wobble modes, both wobble frequency and amplitude can be adjusted for process optimization.
The wobble welding head enhances laser energy conversion and delivers industry‑leading power handling in a fully sealed, lightweight design. It integrates seamlessly with HS lasers, improving weld quality and visual finish. With multiple configurations and the widest range of focus and collimator lens options, it is ideal for welding various material types and thicknesses.
Industry Application
- Automobile manufacturing industry
- Lithium battery industry
- Pillow plate head exchanger
- Machinery Manufacturing Industry
- Furniture industry
- Sheet metal processing industry
- Electronic communication industrys
Pillow Plates Head Exchanger
Pillow Plates are laser‑welded heat exchanger plates used for industrial cooling and heating. As a developer of Pillow Plate laser welding machines, HS LASER has deep expertise in producing high‑quality plates for diverse applications. Our Pillow Plates are widely used in vessels for cooling milk, soft drinks, wine, and beer, and are also applied in the meat processing, chemical, and pharmaceutical industries.

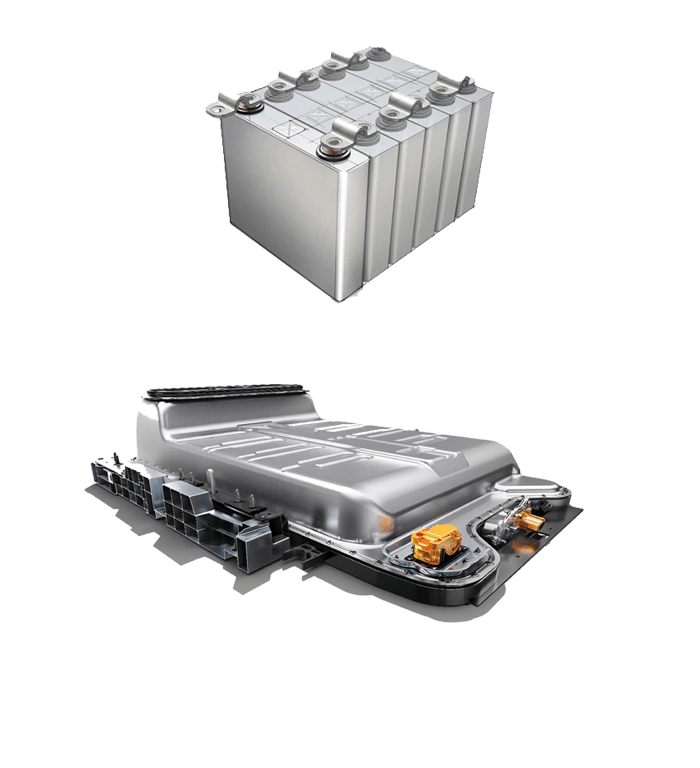

Electric Car Battery Pack Weld System
The rapid shift toward e-Mobility requires high-performance lithium battery pack manufacturing for EVs, trucks, and scooters. Our fiber laser systems address the critical challenges of modern electrification: reducing weight, expanding range, and accelerating charge times. By delivering high-capacity joining with minimal energy loss, we enable the mass production of lightweight, high-throughput battery systems for global automotive leaders.
High-Efficiency Battery Joining
Optimized for lithium battery assembly, our system ensures high current-carrying capacity with negligible energy loss. It delivers the precision needed for complex battery pack structures, improving drivetrain performance and charging speeds.
Lightweight & Cost Optimization
Designed for e-Mobility manufacturing goals, the laser process enables the use of thinner, lightweight materials without sacrificing strength. This reduces overall vehicle weight while lowering material and production costs.
High-Throughput Automation
Meets the demands of the rapidly expanding EV market. Our automated solutions provide superior quality control and faster cycle times, ensuring the high-speed throughput required for global vehicle fleet production.
| Technical Parameters | |
| Model number: HS-AW1000 to HS-AW6000 | Water cooler capacity: Depend on laser power |
| Laser power: 1000W 1500W 2000W
3000W 4000W 6000W |
Type of water: Distilled water or pure water |
| Laser type: Fiber laser technology | HD CCD camera: External |
| Laser wavelength: 1070-1080nm | Weld width range:0.5 to 5mm |
| Laser source: Raycus / IPG / Max / JPT | Rotary device: 80mm optional |
| Weld head: WSX / RayTools / Precitec | Type of gas: Argon gas / Nirogen gas |
| Motorized: Servo motor | Air pressure:3 to 5 bar / 0.3 to 0.5 Mpa |
| Working area: Standard 600x600mm
Accept customizable |
Power required: AC 380V±10%/50Hz 3 Ph. |
| Control system: HS LASER system | Total power: Depend on laser power |
| X axis:500mm | Warranty period: 24 months |
| Y axis:300mm | Machine dimension: 145x120x183cm |
| Z axis:500mm | Net Weight: 590KG |
| Fiber cable length: Standard 10m
Accept costomizable |
Package dimension:165x130x203cm |
1500W IPG automatic laser welding machine welded 0 8mm +5mm stainless steel to make pillow plate
Automation Fiber Laser Welding Machine Weld lithium battery

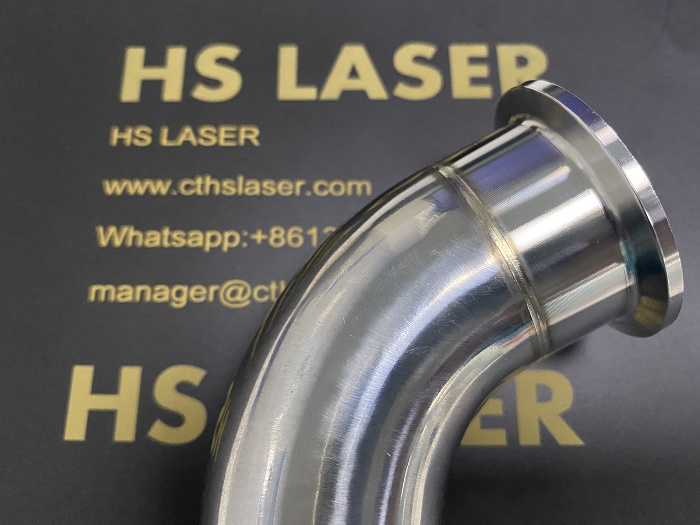

Automation fiber laser welding machine system weld flange,round pipe , pillow plate and Ice skates
