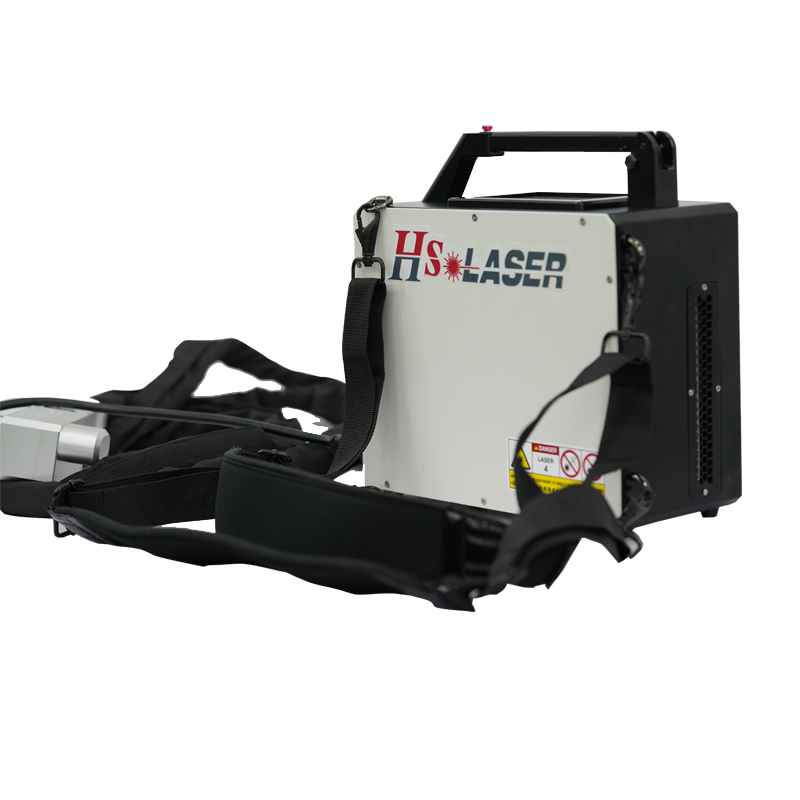

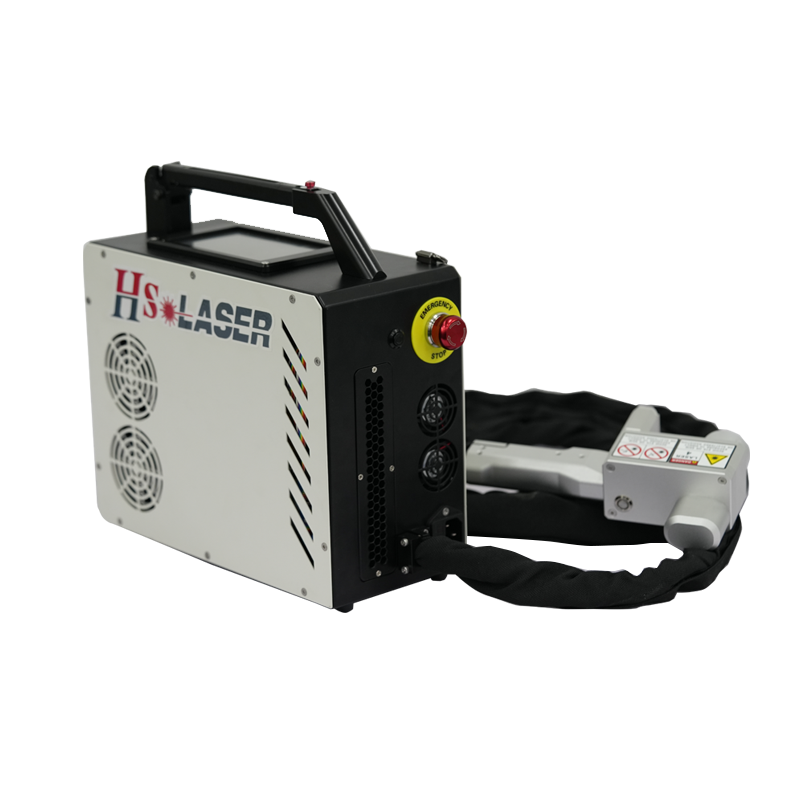

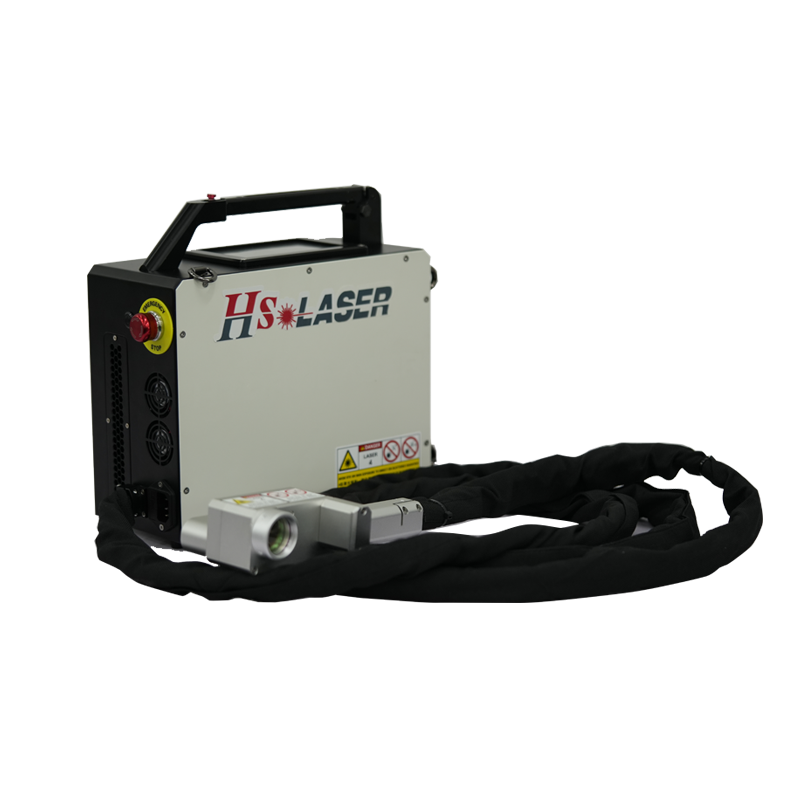

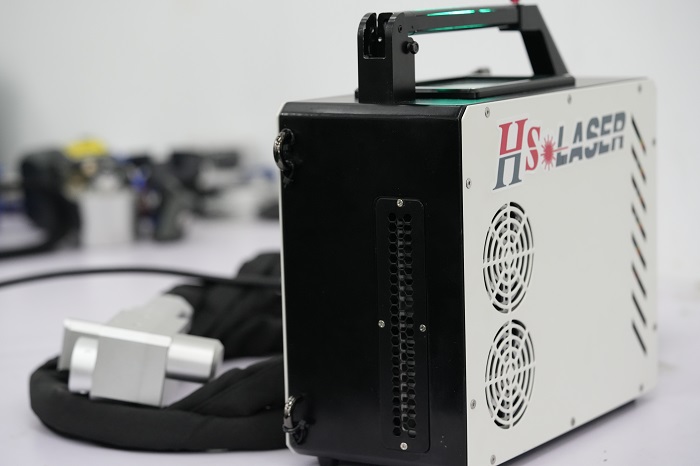

Air cooled mini 100W laser cleaning machine

A professional 100W mini-type pulse laser cleaner designed for maximum mobility. Weighing only 7kg, this system features a super-light scan head and an intuitive interface. It is the ultimate portable solution for fast, precise, and non-destructive surface cleaning in compact workspaces.

Laser Power: 100W

Model Number: HS-LC100

Next-Generation Industrial Laser Cleaning

Laser cleaning is a high-tech, eco-friendly surface treatment that uses high-energy beams to instantly evaporate rust, paint, and oxides. This automated, non-contact process requires no chemicals or water, providing a versatile cleaning solution for automotive, aerospace, and precision mold industries.

Non-Contact Precision

Advanced technology protects sensitive substrates through accurate positioning. It ensures selective cleaning, removing micron-level particles without any physical wear or surface damage.

Eco-Friendly Solution

A sustainable process that eliminates chemicals, media, and water. It operates with zero consumables, reducing operational costs while meeting the highest environmental protection standards.

Superior Cleanliness

Delivers exceptional surface purity by stripping resins, oils, and coatings. The high-speed laser interaction leaves surfaces perfectly clean for immediate secondary processing or coating.

Plug-and-Play Automation

Designed for simple operation and easy integration into production lines. Manual focus adjustment and an intuitive interface ensure high efficiency across diverse industrial applications.

Why are more manufacturers using laser cleaning for material preparation?

Laser cleaning removes contaminants without solvents or abrasives, eliminating handling and disposal issues. Compared with manual or less precise methods, it offers highly controllable, selective cleaning, supports full automation, and delivers consistent, repeatable results that meet modern quality standards.

Eco-Friendly & Cost-Effective

Eliminates hazardous solvents and disposal costs. This "green" technology requires no consumables, providing the lowest-cost and most sustainable cleaning solution.

Precision & Waste Reduction

A non-contact process that removes only unwanted materials without abrasives. It ensures repeatable results with minimal heat and significantly less waste.

Laser Cleaning Machine System

Laser cleaning delivers high‑speed, low‑maintenance surface preparation for removing oil, grease, paint, and coatings across many industries. The process uses no abrasives or solvents, making it clean, chemical‑free, and environmentally friendly. Its spatial selectivity allows cleaning only the required areas, improving efficiency and reducing costs. As a non‑contact and easily automated method, laser cleaning maintains consistent quality while lowering labor and operating expenses.

Abrasive Blasting vs Fiber Laser Cleaning

Traditional blasting creates high disposal costs because the media must be collected and separated from paint debris. Fiber laser cleaning eliminates this issue entirely, offering a controlled, non‑abrasive process that avoids accidental surface damage. It is suitable for thin and composite materials that cannot withstand particle impact. Laser cleaning delivers consistent results independent of operator skill and can be scaled for different job sizes by selecting the appropriate laser power.

Chemical Cleaning vs Fiber Laser Cleaning

Good for cleaning surface contamination from a whole part, chemical cleaning is not easily applied to a selective area. Disposing of the chemicals is an increasingly difficult and costly challenge due to regulatory controls. Fiber lasers can be applied selectively. With no chemicals to degrade, quality is consistent, and there are no chemical solvent disposal issues. With no drying time, parts are available immediately.

Technical Parameters
Model number: HS-LC100	Power supply:Single-phase 220V±10%, 50/60Hz AC
Laser power: 100W	Whole machine power consumption:200W
Laser type: Pulse laser	Working environment humidity:30%～80%
Laser wavelength: 1064±5nm	Fiber length: standard 5m
Laser energy: 1mj	Clean head weight:0.5kg
Pulse Width: 10-50ns	Move method: handheld
Frequency: 1-2000 KHz	Scan width:10 to 80mm
Power adjustment range: 10 to 100% adjustable	Pulse width (ns):10 to 200mm
Laser source type: Pulse tpe laser source	Cooling syste: air cooling
Fiber core:100 μm	Machine Weight:7kg
Focus distance:100mm	Whole machine weight: 350x350xx250mm
Working temperature:0℃～40℃	Packing size: 400x400x300mm
Place the environment:Flat, no vibration, no impact	Packing weight: 13kg
