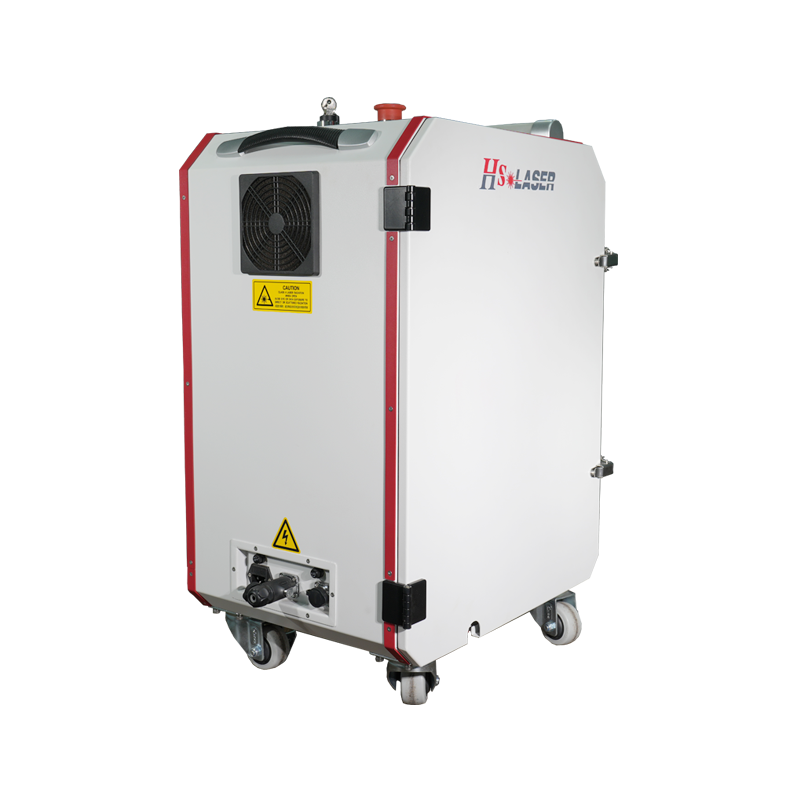

200w 300w Air Cooled Pulse Laser Cleaning Machine

200w 300w Air Cooled Pulse Laser Cleaning Machine (2)

200w 300w Air Cooled Pulse Laser Cleaning Machine (1)

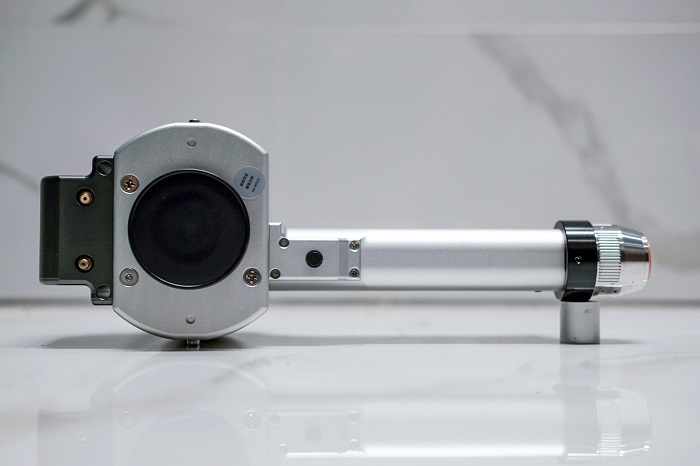

Air cooled laser cleaning machine for suitcases

A professional 200W-300W air-cooled pulse laser cleaner designed for high-speed surface restoration. This easy-to-operate system eliminates the need for water cooling, providing a lightweight and portable solution for fast, non-destructive removal of rust, paint, and contaminants.

Laser Power: 200W | 300W

Model Number: HS-LC200 | HS-LC300

Advanced Industrial Laser Cleaning Technology

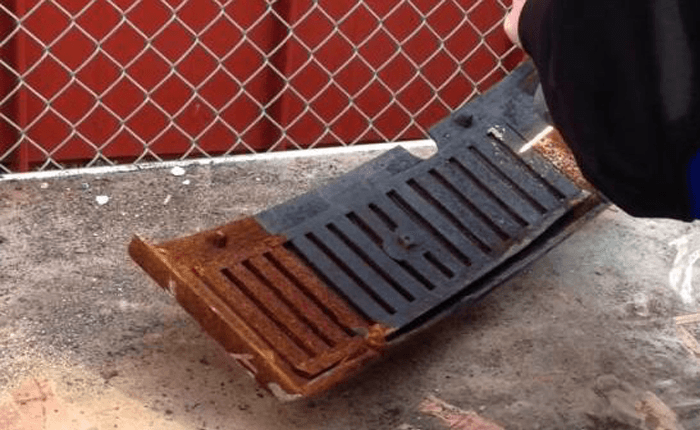

Laser cleaning is a high-tech, eco-friendly surface treatment that uses high-energy beams to evaporate rust, paint, and oxides instantly. This automated, non-contact process requires no chemicals or water, providing a versatile cleaning solution for automotive, marine, and high-end manufacturing industries.

Non-Contact Precision

Advanced technology protects delicate substrates through accurate positioning. It ensures selective cleaning and removes micron-level particles without any physical wear or surface damage.

Eco-Friendly Solution

A sustainable process that eliminates chemicals, media, and water. It operates with zero consumables, reducing costs and environmental impact while simplifying workplace safety.

Superior Cleanliness

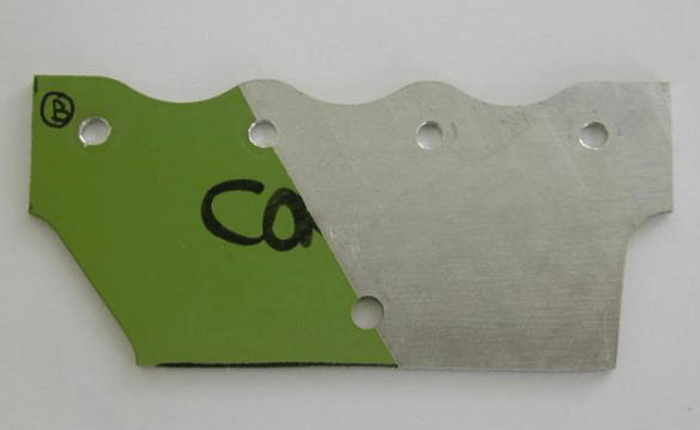

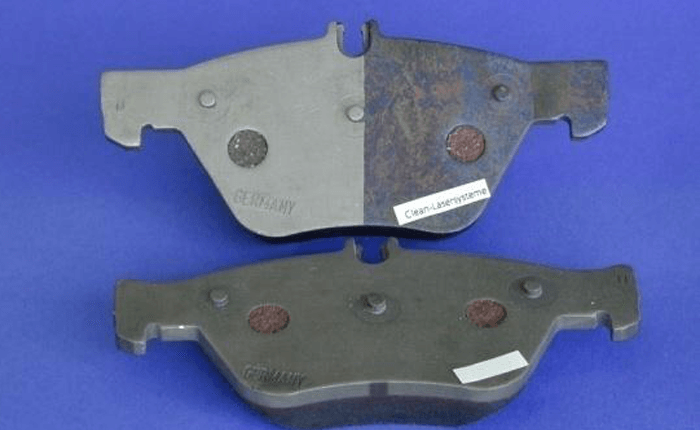

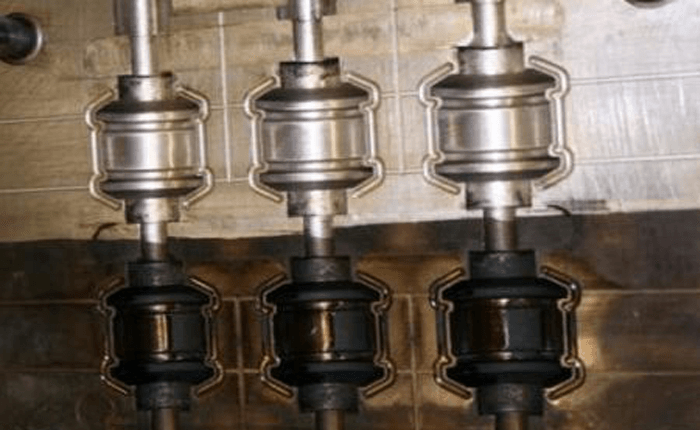

Delivers exceptional surface purity by stripping resins, oils, and coatings. The high-speed laser interaction leaves surfaces perfectly clean for immediate secondary processing.

Plug-and-Play Automation

Designed for simple operation and easy integration into production lines. Manual focus and an intuitive interface ensure high efficiency across diverse industrial applications.

Why are more manufacturers using laser cleaning for material preparation?

Laser cleaning removes contaminants without solvents or abrasives, eliminating handling and disposal issues. Compared with manual or less precise methods, it offers highly controllable, selective cleaning, supports full automation, and delivers consistent, repeatable results that meet modern quality standards.

Eco-Friendly & Cost-Effective

Eliminates hazardous solvents and disposal costs. This "green" technology requires no consumables, providing the lowest-cost and most sustainable cleaning solution.

Precision & Waste Reduction

A non-contact process that removes only unwanted materials without abrasives. It ensures repeatable results with minimal heat and significantly less waste.

Laser Cleaning Machine System

Laser cleaning delivers high‑speed, low‑maintenance surface preparation for removing oil, grease, paint, and coatings across many industries. The process uses no abrasives or solvents, making it clean, chemical‑free, and environmentally friendly. Its spatial selectivity allows cleaning only the required areas, improving efficiency and reducing costs. As a non‑contact and easily automated method, laser cleaning maintains consistent quality while lowering labor and operating expenses.

Abrasive Blasting vs Fiber Laser Cleaning

Traditional blasting creates high disposal costs because the media must be collected and separated from paint debris. Fiber laser cleaning eliminates this issue entirely, offering a controlled, non‑abrasive process that avoids accidental surface damage. It is suitable for thin and composite materials that cannot withstand particle impact. Laser cleaning delivers consistent results independent of operator skill and can be scaled for different job sizes by selecting the appropriate laser power.

Chemical Cleaning vs Fiber Laser Cleaning

Good for cleaning surface contamination from a whole part, chemical cleaning is not easily applied to a selective area. Disposing of the chemicals is an increasingly difficult and costly challenge due to regulatory controls. Fiber lasers can be applied selectively. With no chemicals to degrade, quality is consistent, and there are no chemical solvent disposal issues. With no drying time, parts are available immediately.

Technical Parameters

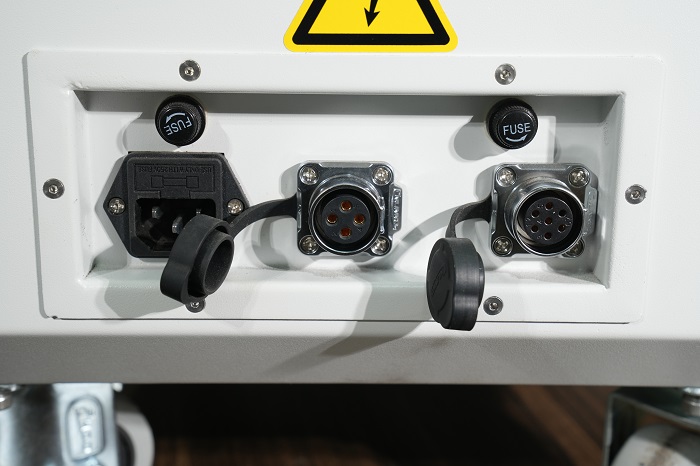

Model number: HS-LC200 / HS-LC300	Power supply:Single-phase 220V±10%, 50/60Hz AC
Laser power:200W / 300W	Whole machine power consumption:800w / 1300w
Laser type: fiber technology	Working environment humidity:30%～80%
Laser wavelength: 1064±5nm	Fiber length: standard 5mm
Laser energy: 1 mJ 2mJ 5mJ 10mJ 15mJ	Clean head weight:1.5kg
Maximum output power: 200W	Move method: handheld
Frequency: 20-400KHz / 20-2000KHz	Scan width:10 to 200mm
Power adjustment range: 10 to 100% adjustable	Pulse width (ns):130-160ns
Laser source type: pulse laser	Cooling syste: Air cooled
Fiber core:100 μm	Machine size:538441685mm
Focus distance:160/ 160 254mm	Whole machine weight:75kg
Working temperature:0℃～40℃	Packing side:980680640mm
Place the environment:Flat, no vibration, no impact	Packing weight:95kg
